Photovoltaic PV-10A10F 1000V/10A

Basic introduction:

PV series fuses:

PV - (current) A10F

PV - (current) A10-T

PV - (current) A10-1P

PV - (current) A10-2P

Characteristics of photovoltaic products: 1000-1500V DC load capacity; Maximum breaking capacity of 33 kA; Low overload protection capability; 1.3 x rated current; The applicable ambient temperature can reach up to 80 degrees Celsius; Compact dimensions of 10x38; The versatile installation structure meets your different needs

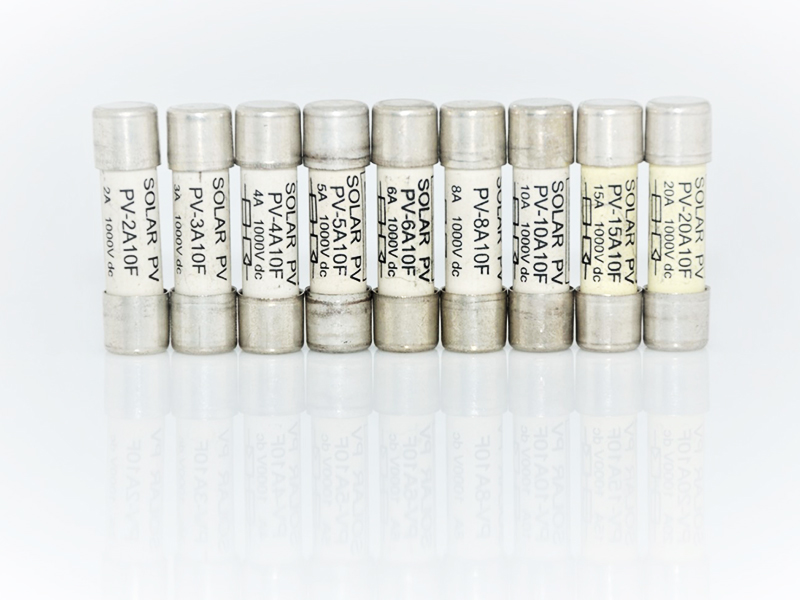

Product Name：photovoltaicPV-10A10F 1000V/10A

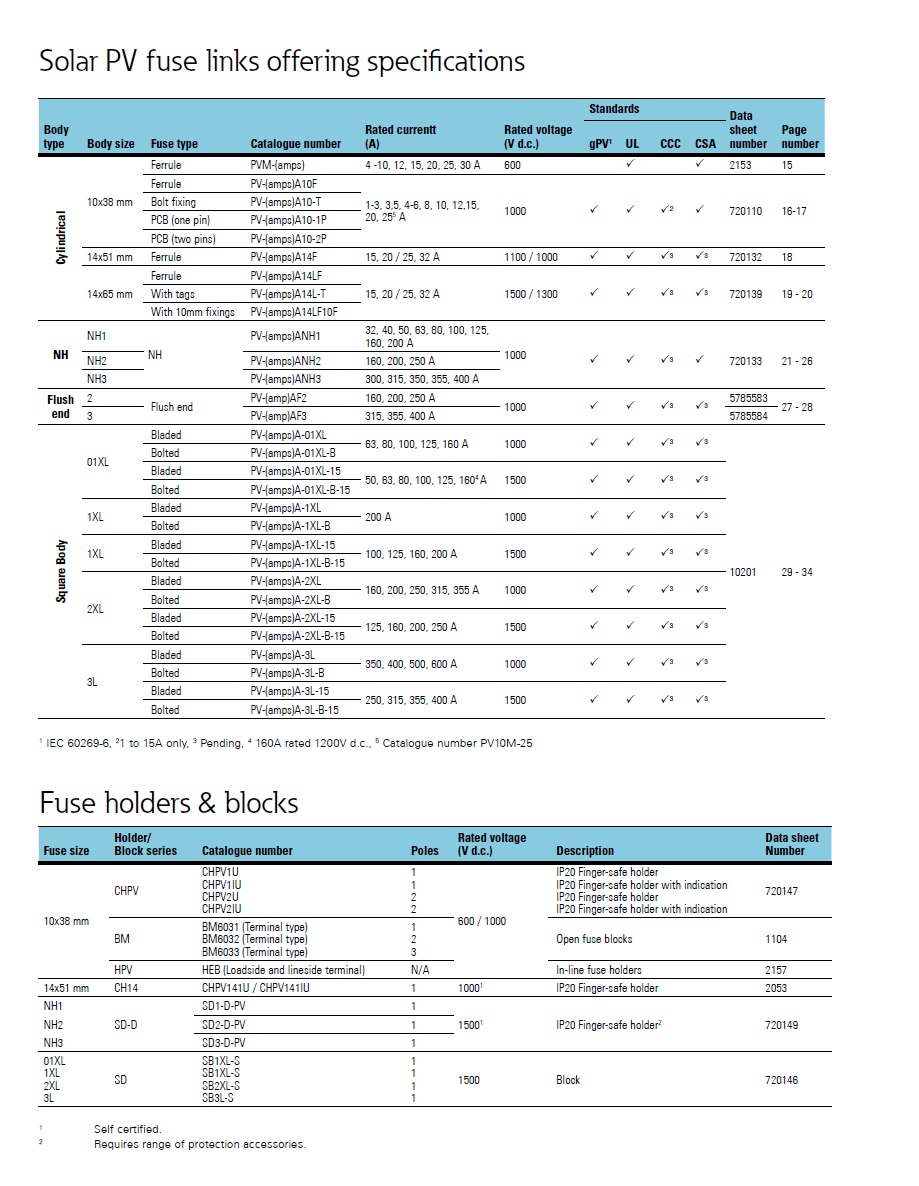

Model and parameters:

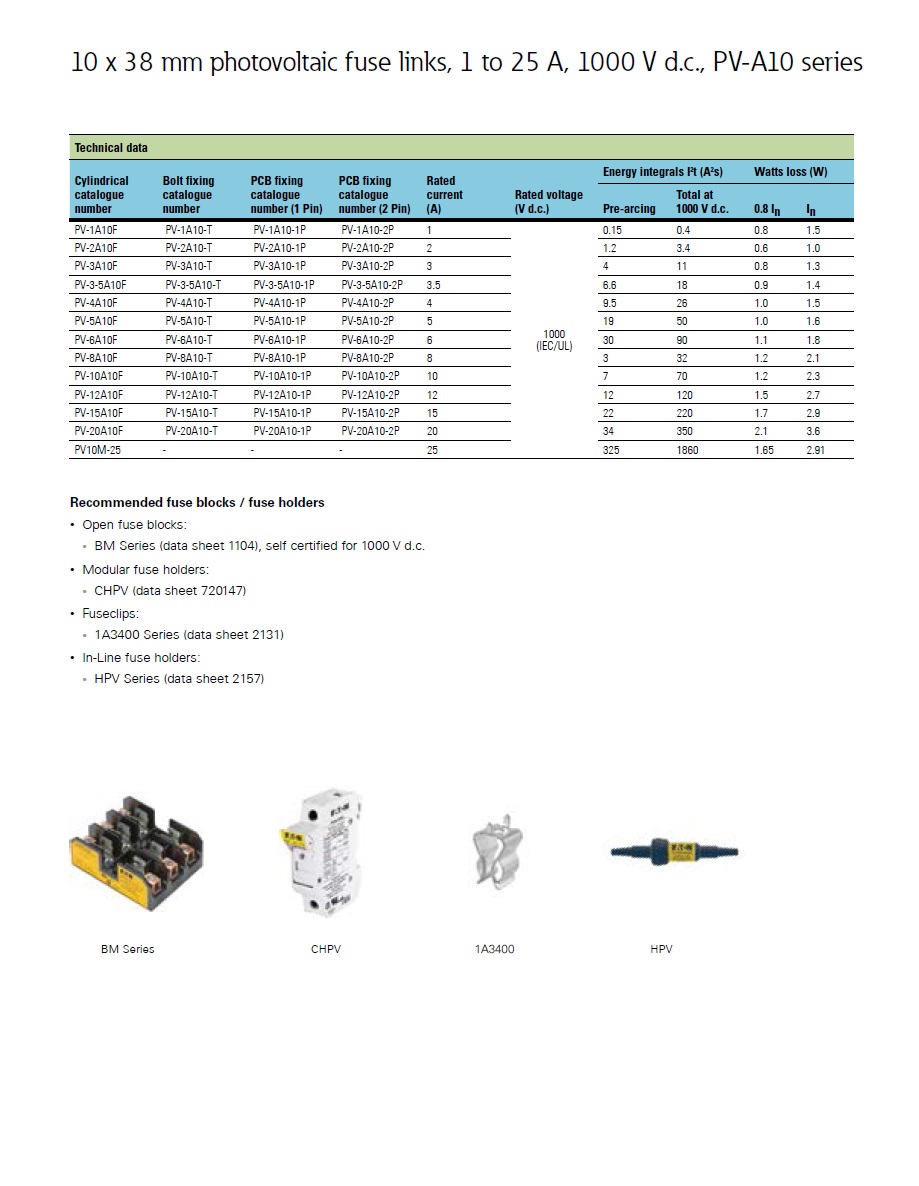

Model	Voltage(VDC)	current(A)	Model	Voltage(VDC)	current(A)
PV-1A10F	1000	1	PV-2.25A10F85L	1500	2.25
PV-2A10F	1000	2	PV-2.5A10F85L	1500	2.5
PV-3A10F	1000	3	PV-3A10F85L	1500	3
PV-4A10F	1000	4	PV-4A10F85L	1500	4
PV-5A10F	1000	5	PV-5A10F85L	1500	5
PV-6A10F	1000	6	PV-12A10F85L	1500	12
PV-8A10F	1000	8	PV-15A10F85L	1500	15
PV-10A10F	1000	10	PV-16A10F85L	1500	16
PV-12A10F	1000	12	PV-20A10F85L	1500	20
PV-15A10F	1000	15	PV-25A10F85L	1500	25
PV-20A10F	1000	20
PV-25A14F	1000	25
PV-32A14F	1000	32

基本介绍：

PV系列保险丝：

PV-(电流)A10F

PV-(电流)A10-T

PV-(电流)A10-1P

PV-(电流)A10-2P

光伏产品特点：1000-1500v dc 负载能力； 33 kA 最大分断能力；低过载保护能力； 1.3 x 额定电流；适用的环境温度最高达80摄氏度；紧凑的外形尺寸 10x38 ；多变的安装结构满足您的不同需求.

额定电压： 1000-1500Vdc

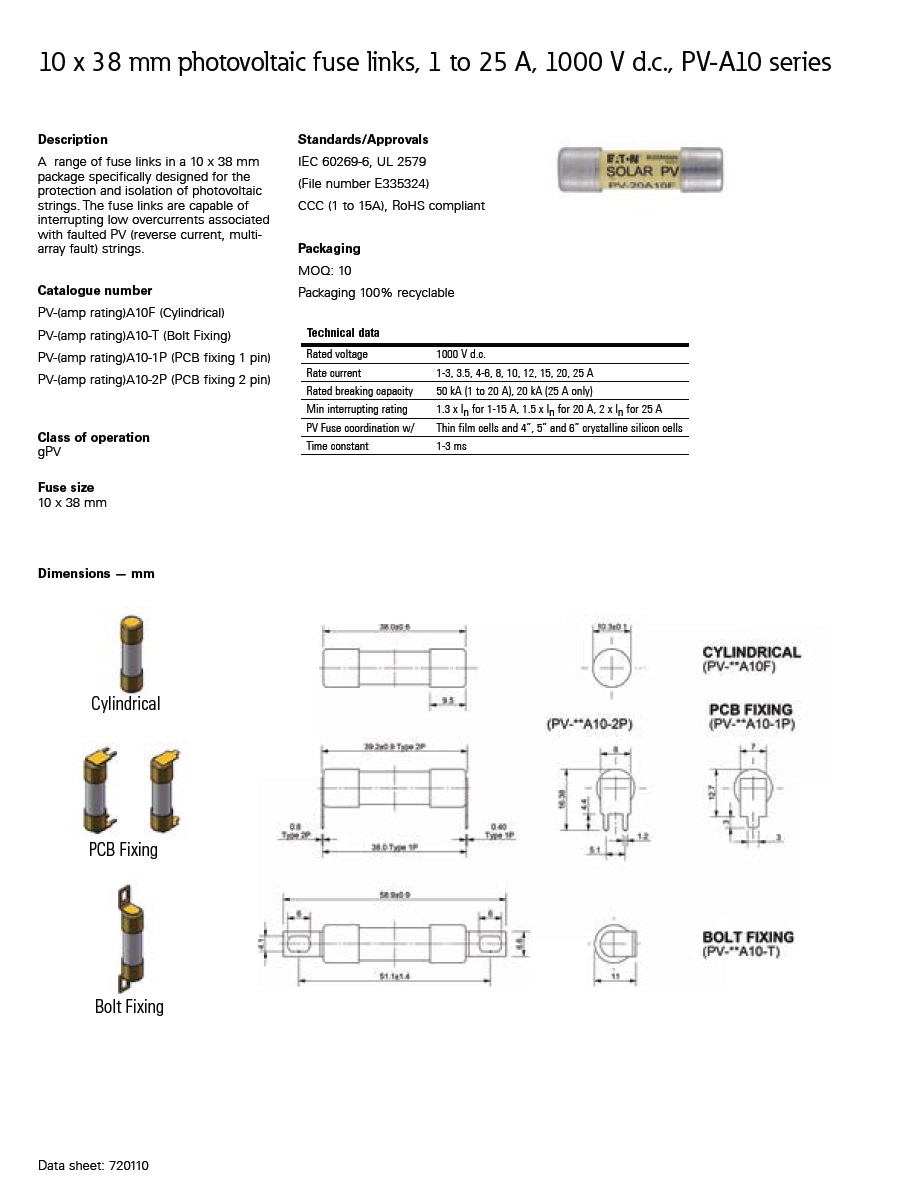

规格：10*38mm 14*51mm 10*85mm

PCB熔丝夹：1A3400-9

选配底座：CHPV1U,CHM1DU, CHPV15L85 ,CHPV141U

额定分断电流: 10kAdc 33kAdc

最小分断电流: 1.3 x In

PV 熔丝选用配合：薄膜电池与4”, 5” 和 6”晶体硅电池

时间常数：1 ms

安装形式：圆型管式；螺栓固定式；PCB安装式

BUSSMANN光伏熔断器PV产品在汇流箱中，根据使用的熔断器座不同，有三种安装方式，分别是使用CH底座、BM底座、简易夹底座
