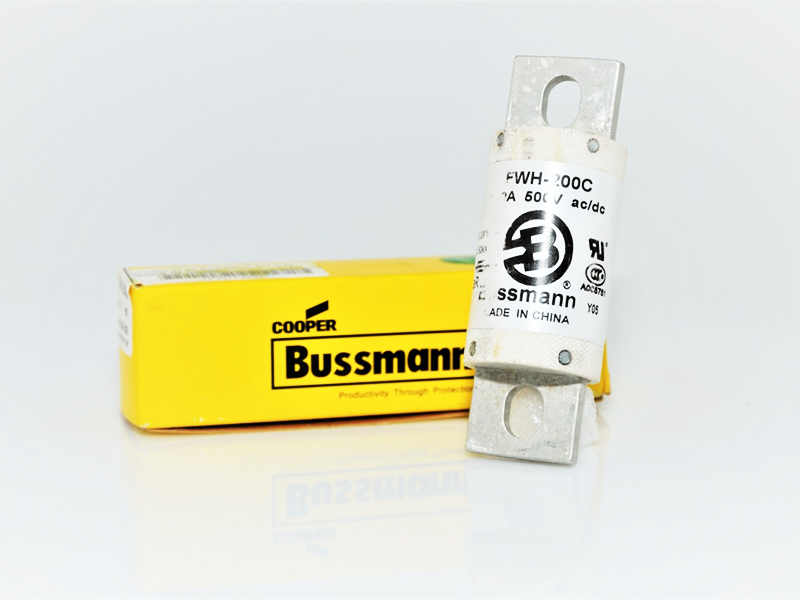

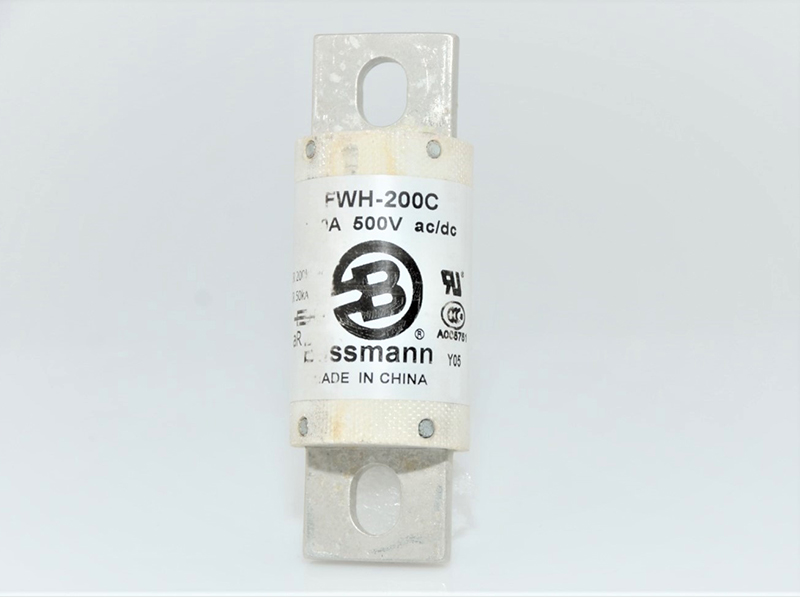

Product Name: North AmericaFWH-200 500V/200A
Product parameters and model:
voltage 500V model35-800A
current
FWH-35C FWH-275C
FWH-40C FWH-300C
FWH-45C FWH-325C
FWH-50C FWH-350C
FWH-60C FWH-400C
FWH-70C FWH-500C
FWH-80C FWH-450C
FWH-90C FWH-600C
FWH-100C FWH-700C
FWH-125C FWH-800C
FWH-150C
FWH-175C
FWH-200C
FWH-225C
FWH-250C
The 35-800A product has been recognized by UL.
Symmetrical breaking capacity of 200KA RMS.
The power loss is the power loss value at rated current.
250V DC/20KA breaking capacity.
Basic introduction:
BUSSMANN offers a full range of North American knife type flat end fuses and accessories. The product design and construction have been optimized and have the following characteristics:
1. Low power integration flux (I2t)
2. Low power loss
3. High recyclability
4. Low arc voltage
5. Superior DC performance
For some North American series products, external and internal open type fuse indicators can be provided. For most applications, a fuse base can be provided.
BUSSMANN North American series fuse bases 1BS101, 1BS102, 1BS103, 1BS104.
Joint type fuse holder, suitable for wire termination and has heat dissipation function.
1BS101 has a maximum voltage of 600V and a maximum rated current of 100A.
1BS102 maximum voltage 600V, current 400A;
1BS103 maximum voltage 600V, current 400A;
1BS104 has a maximum voltage of 600V and a current of 600A.
BUSSMANN offers a variety of TRON brand fixed rectifier fuse holders.
The connection of cables and fuses is the same as that of bolt type fuse holders, and can be installed with double headed bolts.
