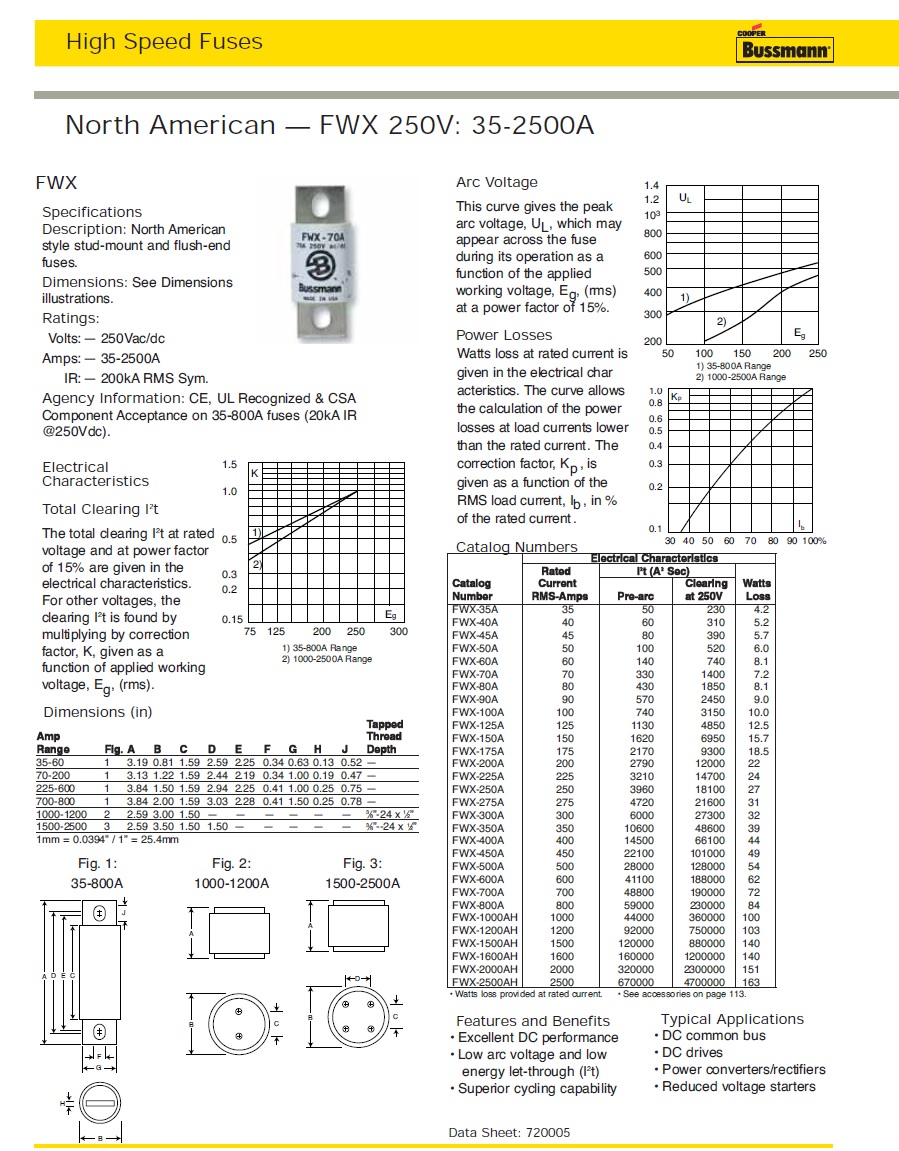

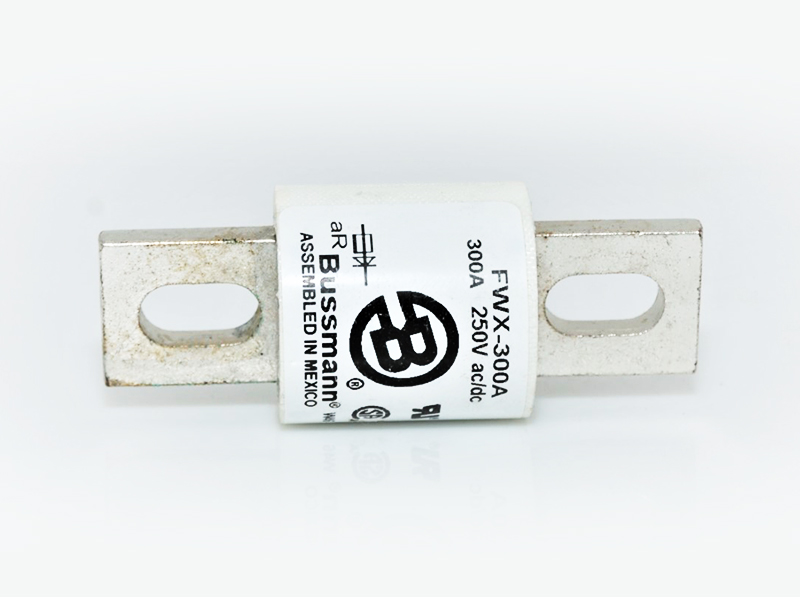

Product Name: North AmericaFWX-300A 250V300A
Product parameters and model：
voltage250V current35-2500A
model：
FWX-35A FWX-100A FWX-300A FWX-1000AH
FWX-40A FWX-125A FWX-350A FWX-1200AH
FWX-45A FWX-150A FWX-400A FWX-1500AH
FWX-50A FWX-175A FWX-450A FWX-1600AH
FWX-60A FWX-200A FWX-500A FWX-2000AH
FWX-70A FWX-225A FWX-600A FWX-2500AH
FWX-80A FWX-250A FWX-700A
FWX-90A FWX-275A FWX-800A
The 35-800A product has been recognized by UL.
Symmetrical breaking capacity of 200KA RMS.
The power loss is the power loss value at rated current.
250V DC/20KA breaking capacity.
Basic introduction:
BUSSMANN offers a full range of North American knife type flat end fuses and accessories. The product design and construction have been optimized and have the following characteristics:
1. Low power integration flux (I2t)
2. Low power loss
3. High recyclability
4. Low arc voltage
5. Superior DC performance
For some North American series products, external and internal open type fuse indicators can be provided. For most applications, a fuse base can be provided.
BUSSMANN North American series fuse bases 1BS101, 1BS102, 1BS103, 1BS104.
Joint type fuse holder, suitable for wire termination and has heat dissipation function.
1BS101 has a maximum voltage of 600V and a maximum rated current of 100A.
1BS102 maximum voltage 600V, current 400A;
1BS103 maximum voltage 600V, current 400A;
1BS104 has a maximum voltage of 600V and a current of 600A.
BUSSMANN offers a variety of TRON brand fixed rectifier fuse holders.
The connection of cables and fuses is the same as that of bolt type fuse holders, and can be installed with double headed bolts.
