Product Name: North AmericaFWP-600C 700V/600A

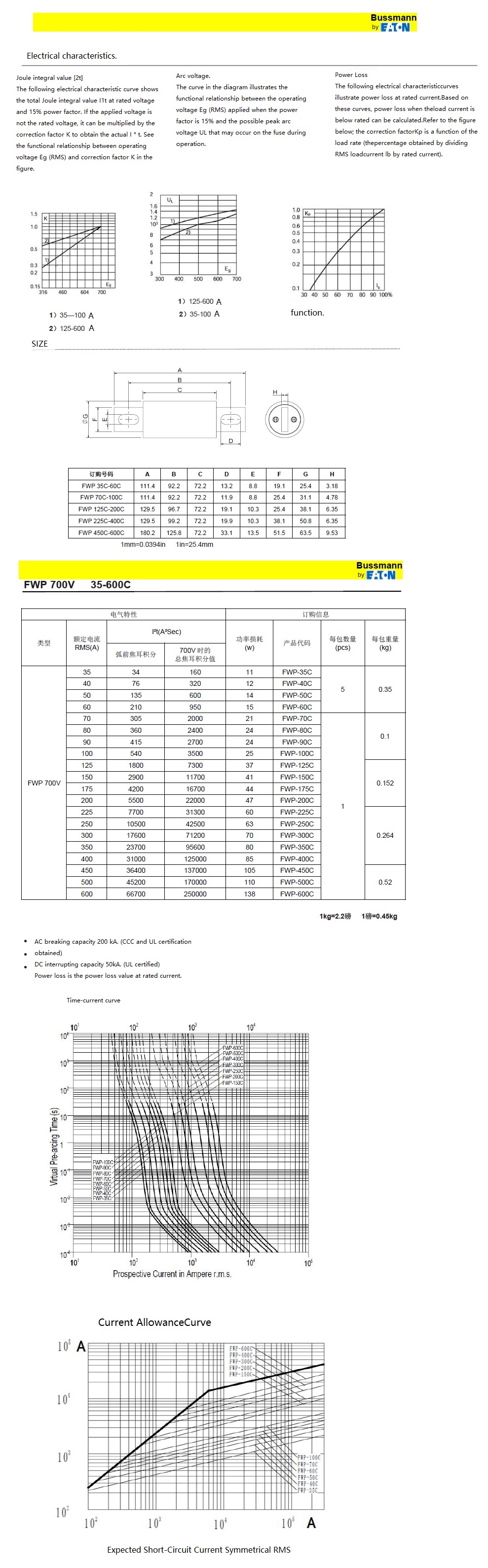

Product parameters and model:
voltage 700V current 5-1200A
FWP-5B FWP-50C FWP-175C FWP-500C
FWP-10B FWP-60C FWP-200C FWP-600C
FWP-15B FWP-70C FWP-225C
FWP-20B FWP-80C FWP-250C
FWP-25B FWP-90C FWP-300C
FWP-30B FWP-100C FWP-350C
FWP-35C FWP-125C FWP-400C
FWP-40C FWP-150C FWP-450C
For more models, please contact us.
Symmetrical breaking capacity of 200KA RMS.
The power loss is the power loss value at rated current.
700V DC/breaking capacity 50KA.
The 5-800A product has been recognized by UL.
Basic introduction:
BUSSMANN offers a full range of North American knife type flat end fuses and accessories. The product design and construction have been optimized and have the following characteristics:
1. Low power integration flux (I2t)
2. Low power loss
3. High recyclability
4. Low arc voltage
5. Superior DC performance
For some North American series products, external and internal open type fuse indicators can be provided. For most applications, a fuse base can be provided.
BUSSMANN North American series fuse bases 1BS101, 1BS102, 1BS103, 1BS104.
Joint type fuse holder, suitable for wire termination and has heat dissipation function.
1BS101 has a maximum voltage of 600V and a maximum rated current of 100A.
1BS102 maximum voltage 600V, current 400A;
1BS103 maximum voltage 600V, current 400A;
1BS104 has a maximum voltage of 600V and a current of 600A.
BUSSMANN offers a variety of TRON brand fixed rectifier fuse holders.
The connection of cables and fuses is the same as that of bolt type fuse holders, and can be installed with double headed bolts.
