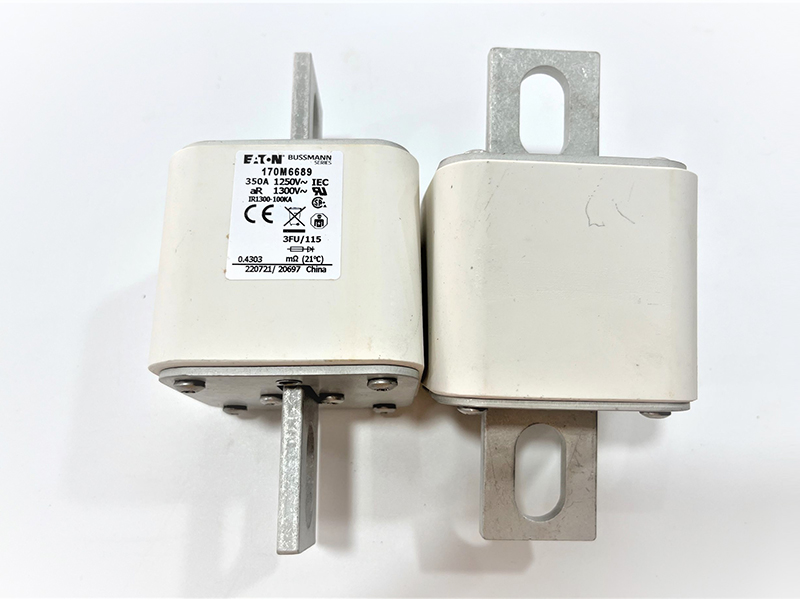

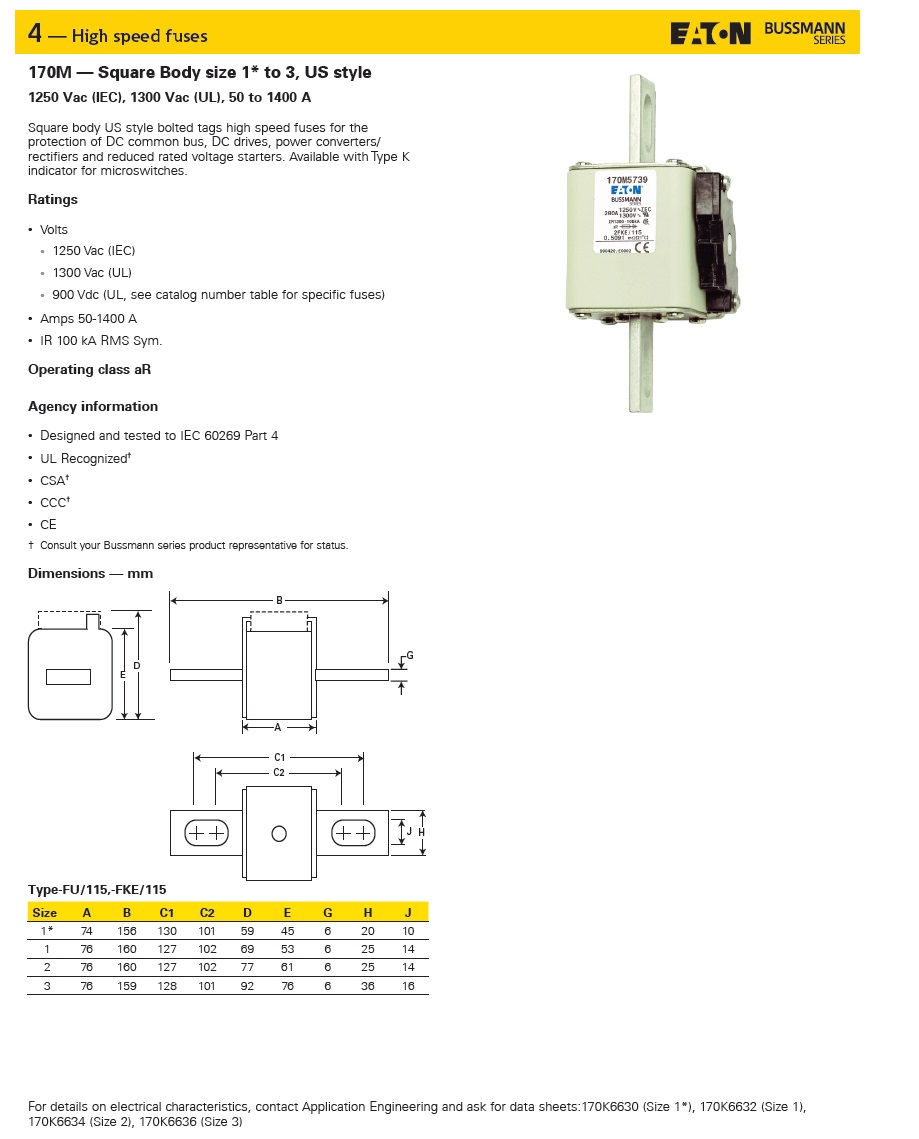

Product Name: European Standard 170M6689 1250V/1300V (50-1400A) American Installation

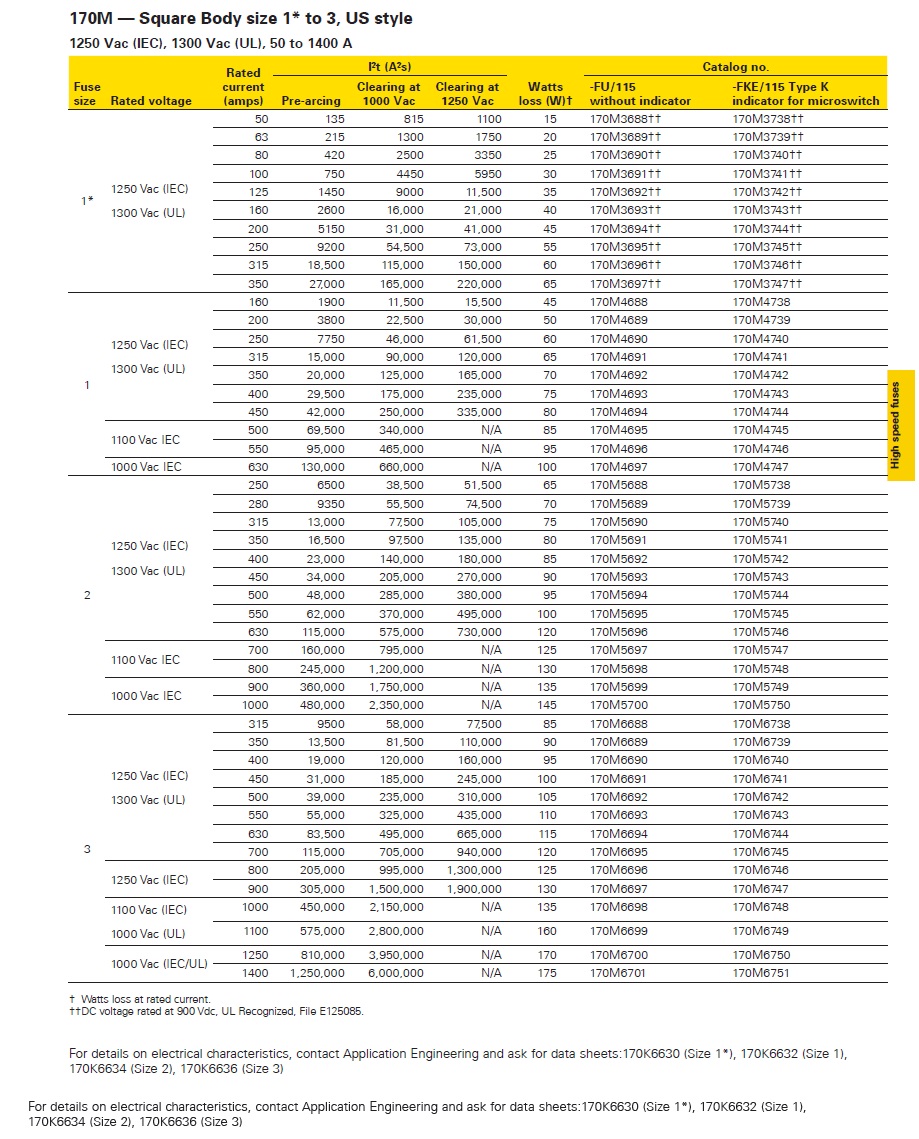

Product parameters and model:
European Standard Square Series - American Style
Voltage: 1250V/1300V
Current: 50-1400A
Size: 1 * Tube: 45 * 45mm 1 * Tube: 53 * 53mm 2 * Tube: 61 * 61mm 3 * Tube: 76 * 76mm
Breaking capacity: 100KA RMS symmetrical
Installation method: American style installation
Tube 1 * 45 * 45mm, installation method: American style installation
Voltage: 1250V Current: 50A 170M3688 170M3738
Voltage: 1250V Current: 63A 170M3689 170M3739
Voltage: 1250V Current: 80A 170M3690 170M3740
Voltage: 1250V Current: 100A 170M3691 170M3741
Voltage: 1250V Current: 125A 170M3692 170M3742
Voltage: 1250V Current: 160A 170M3693 170M3743
Voltage: 1250V Current: 200A 170M3694 170M3744
Voltage: 1250V Current: 250A 170M3695 170M3745
Voltage: 1250V Current: 315A 170M3696 170M3746
Voltage: 1250V Current: 350A 170M3697 170M3747
Tube 1 53 * 53mm, installation method: American style installation
Voltage: 1250V Current: 160A 170M4688 170M4738
Voltage: 1250V Current: 200A 170M4689 170M4739
Voltage: 1250V Current: 250A 170M4690 170M4740
Voltage: 1250V Current: 315A 170M4691 170M4741
Voltage: 1250V Current: 350A 170M4692 170M4742
Voltage: 1250V Current: 400A 170M4693 170M4743
Voltage: 1250V Current: 450A 170M4694 170M4744
Voltage: 1250V Current: 500A 170M4695 170M4745
Voltage: 1100V Current: 550A 170M4696 170M4746
Voltage: 1000V Current: 630A 170M4697 170M4747
Pipe No. 2 61 * 61mm, installation method: American style installation
Voltage: 1250V Current: 250A 170M5688 170M5738
Voltage: 1250V Current: 280A 170M5689 170M5739
Voltage: 1250V Current: 315A 170M5690 170M5740
Voltage: 1250V Current: 350A 170M5691 170M5741
Voltage: 1250V Current: 400A 170M5692 170M5742
Voltage: 1250V Current: 450A 170M5693 170M5743
Voltage: 1250V Current: 500A 170M5694 170M5744
Voltage: 1250V Current: 550A 170M5695 170M5745
Voltage: 1250V Current: 630A 170M5696 170M5746
Voltage: 1100V Current: 700A 170M5697 170M5747
Voltage: 1100V Current: 800A 170M5698 170M5748
Voltage: 1000V Current: 900A 170M5699 170M5749
Voltage: 1000V Current: 1000A 170M5700 170M5750
Pipe No. 3 76 * 76mm, installation method: American style installation
Voltage: 1250V Current: 315A 170M6688 170M6738
Voltage: 1250V Current: 350A 170M6689 170M6739
Voltage: 1250V Current: 400A 170M6690 170M6740
Voltage: 1250V Current: 450A 170M6691 170M6741
Voltage: 1250V Current: 500A 170M6692 170M6742
Voltage: 1250V Current: 550A 170M6693 170M6743
Voltage: 1250V Current: 630A 170M6694 170M6744
Voltage: 1250V Current: 700A 170M6695 170M6745
Voltage: 1250V Current: 800A 170M6696 170M6746
Voltage: 1250V Current: 900A 170M6697 170M6747
Voltage: 1100V Current: 1000A 170M6698 170M6748
Voltage: 1100V Current: 1100A 170M6699 170M6749
Voltage: 1000V Current: 1250A 170M6700 170M6750
Voltage: 1000V Current: 1400A 170M6701 170M6751
