Product Name: European Standard 170M4534 1000V (50-1400A) American Installation K-Type Micro Switch
Product parameters and model:

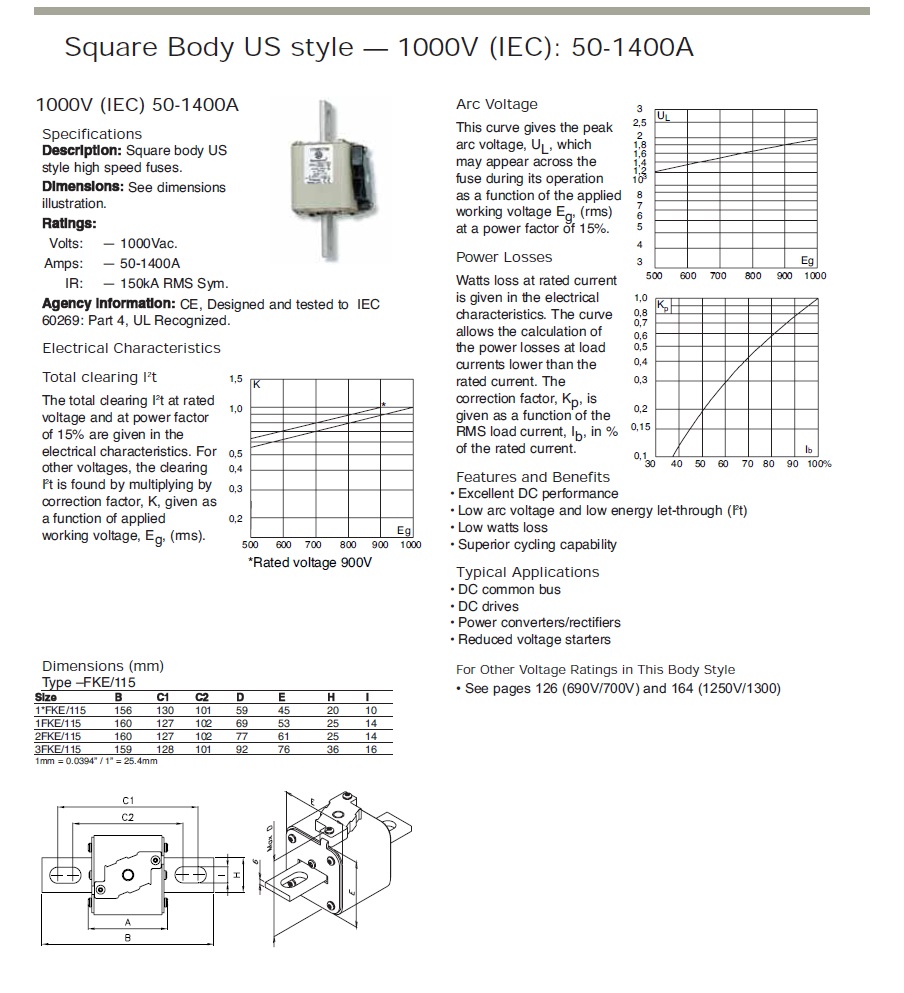

European Standard Square Series - American Style
Voltage: 1000V
Current: 50-1400A
Size: 1 * Tube: 45 * 45mm 1 * Tube: 53 * 53mm 2 * Tube: 61 * 61mm 3 * Tube: 76 * 76mm
Breaking capacity: 150KA RMS symmetrical
Installation method: American style installation

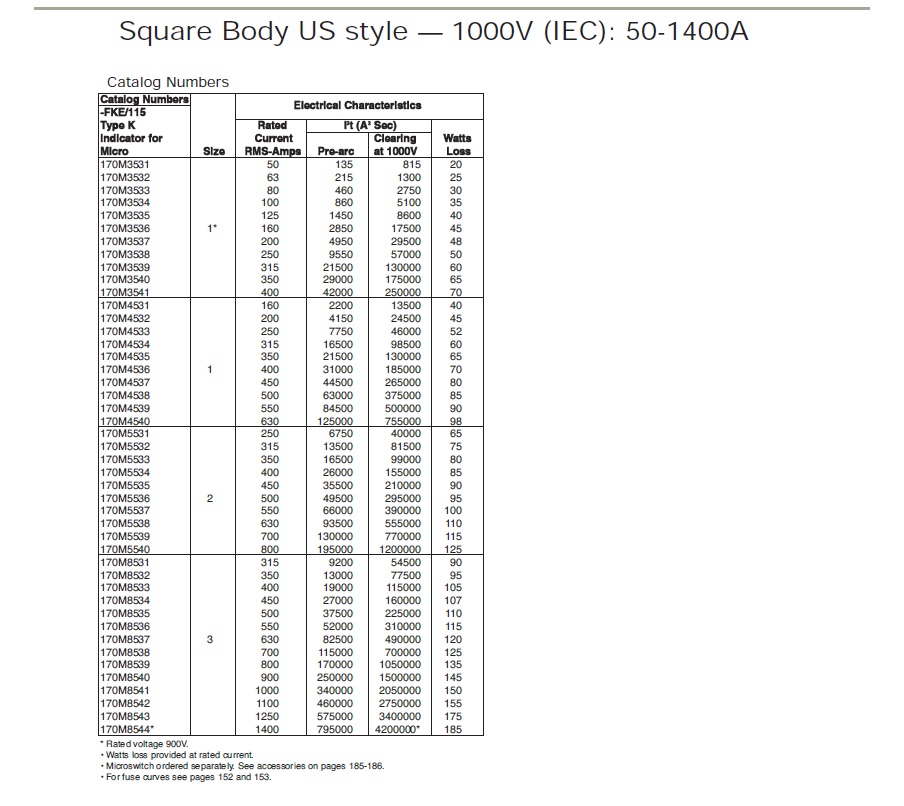

Tube 1 * 45 * 45mm, installation method: American style installation
Voltage: 1000V Current: 50A 170M3531
Voltage: 1000V Current: 63A 170M3532
Voltage: 1000V Current: 80A 170M3533
Voltage: 1000V Current: 100A 170M3534
Voltage: 1000V Current: 125A 170M3535
Voltage: 1000V Current: 160A 170M3536
Voltage: 1000V Current: 200A 170M3537
Voltage: 1000V Current: 250A 170M3538
Voltage: 1000V Current: 315A 170M3539
Voltage: 1000V Current: 350A 170M3540
Voltage: 1000V Current: 400A 170M3541
Tube 1 53 * 53mm, installation method: American style installation
Voltage: 1000V Current: 160A 170M4531
Voltage: 1000V Current: 200A 170M4532
Voltage: 1000V Current: 250A 170M4533

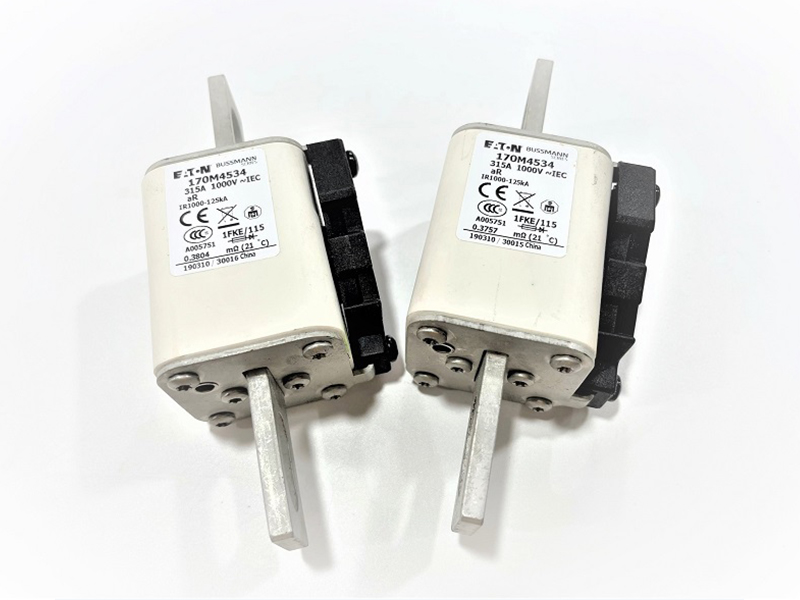

Voltage: 1000V Current: 315A 170M4534
Voltage: 1000V Current: 350A 170M4535
Voltage: 1000V Current: 400A 170M4536
Voltage: 1000V Current: 450A 170M4537
Voltage: 1000V Current: 500A 170M4538
Voltage: 1000V Current: 550A 170M4539
Voltage: 1000V Current: 630A 170M4540
Pipe No. 2 61 * 61mm, installation method: American style installation
Voltage: 1000V Current: 250A 170M5531
Voltage: 1000V Current: 315A 170M5532
Voltage: 1000V Current: 350A 170M5533
Voltage: 1000V Current: 400A 170M5534
Voltage: 1000V Current: 450A 170M5535
Voltage: 1000V Current: 500A 170M5536
Voltage: 1000V Current: 550A 170M5537
Voltage: 1000V Current: 630A 170M5538
Voltage: 1000V Current: 700A 170M5539
Voltage: 1000V Current: 800A 170M5540
Pipe No. 3 76 * 76mm, installation method: American style installation
Voltage: 1000V Current: 315A 170M8531
Voltage: 1000V Current: 350A 170M8532
Voltage: 1000V Current: 400A 170M8533
Voltage: 1000V Current: 450A 170M8534

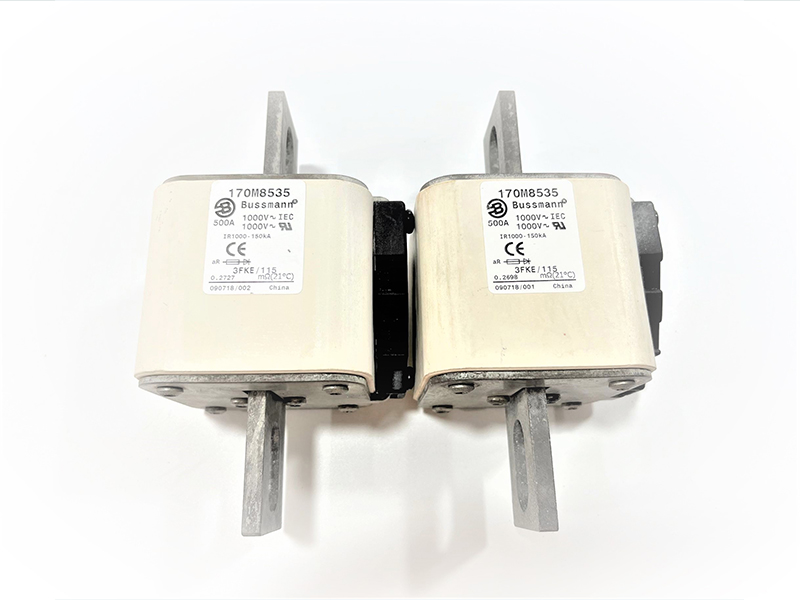

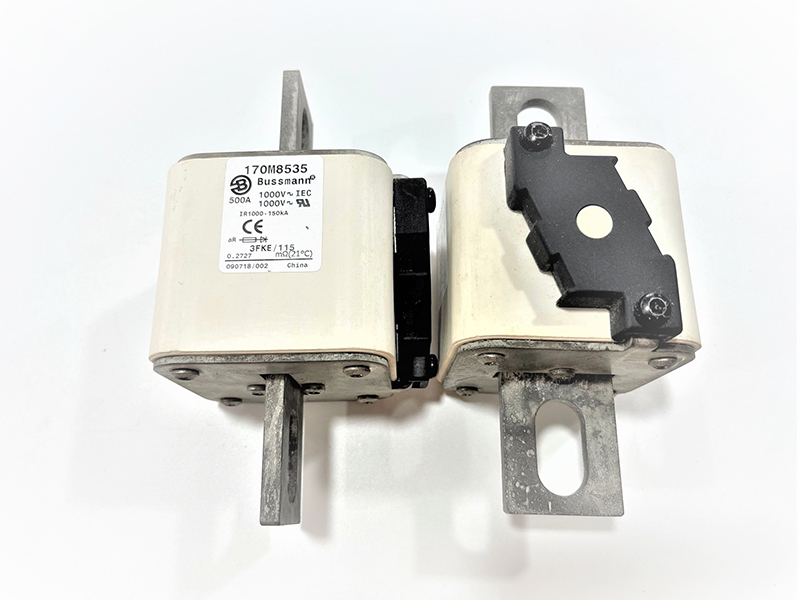

Voltage: 1000V Current: 500A 170M8535
Voltage: 1000V Current: 550A 170M8536
Voltage: 1000V Current: 630A 170M8537
Voltage: 1000V Current: 700A 170M8538
Voltage: 1000V Current: 800A 170M8539
Voltage: 1000V Current: 900A 170M8540
Voltage: 1000V Current: 1000A 170M8541
Voltage: 1000V Current: 1100A 170M8542
Voltage: 1000V Current: 1250A 170M8543
Voltage: 900V Current: 1400A 170M8544
The breaking capacity is 200KA (estimated to be 300KA) RMS symmetrical.
The power loss is the power loss value at rated current.
Micro switch indicator can be ordered separately.
