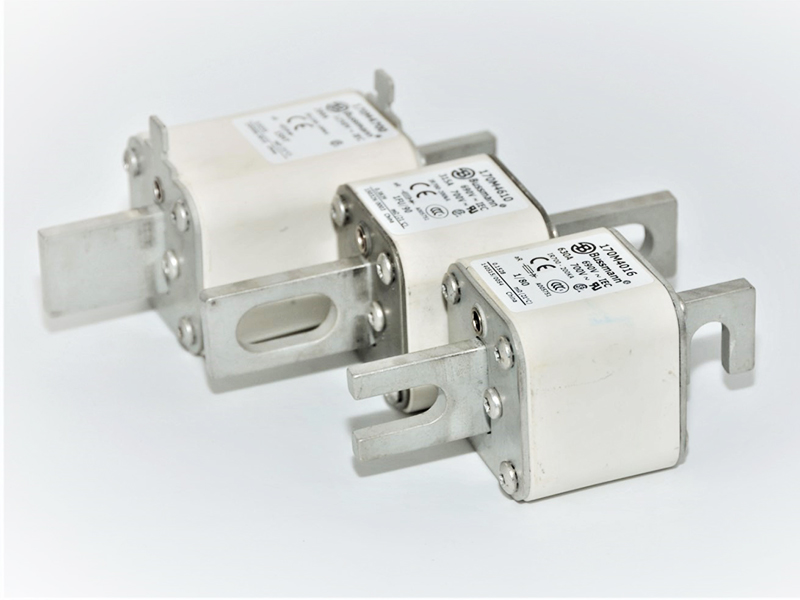

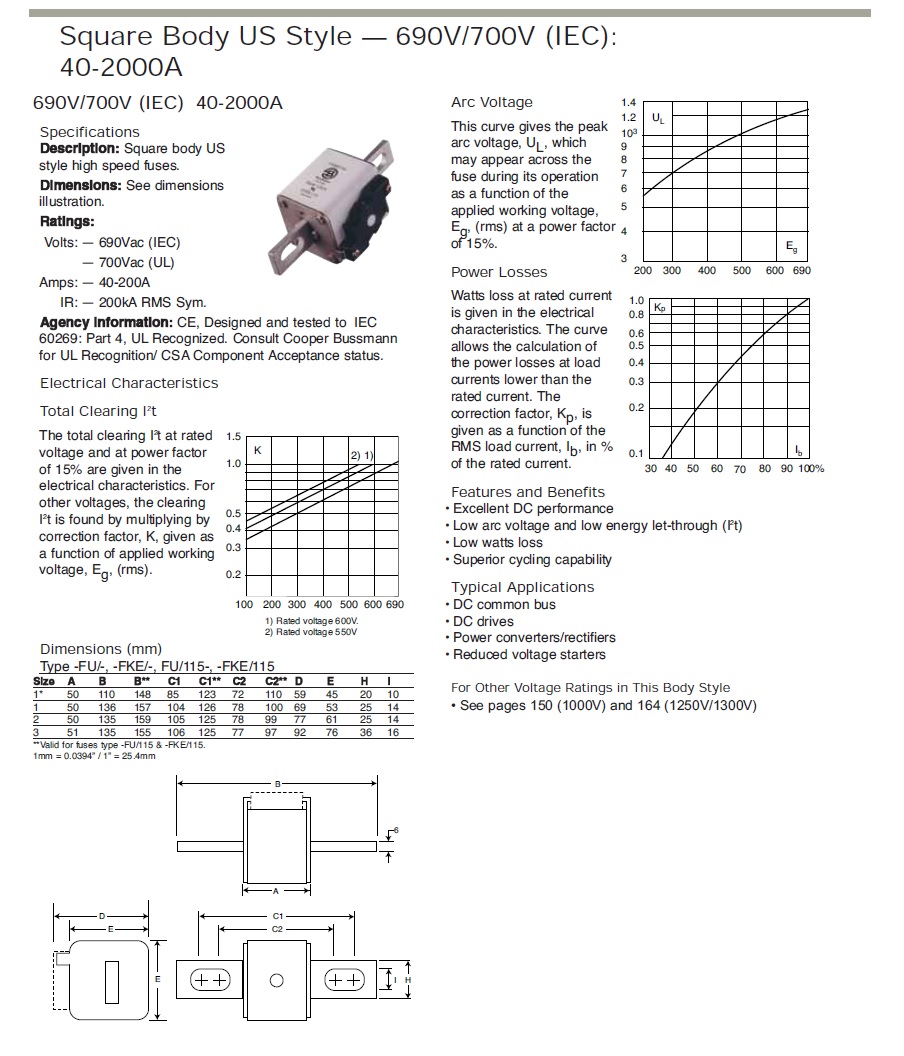

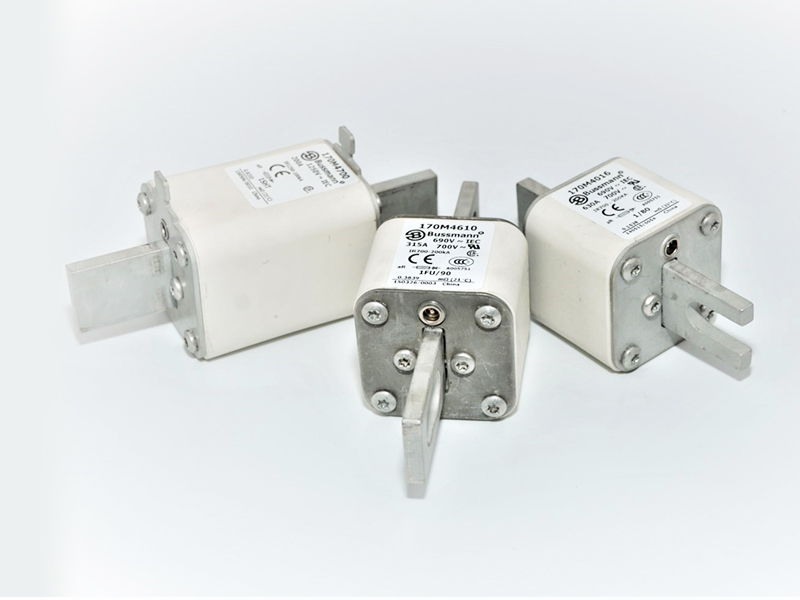

Product Name: European Standard 170M4610 690V/700V (40-2000A) Bolt Installation
Product parameters and model:
European Standard Square Series - American Style
Voltage: 690V/700V
Current: 40-2000A
Size: 1 * Tube: 45 * 45mm 1 * Tube: 53 * 53mm 2 * Tube: 61 * 61mm 3 * Tube: 76 * 76mm
Breaking capacity: 200KA RMS symmetrical
Installation method: American style installation

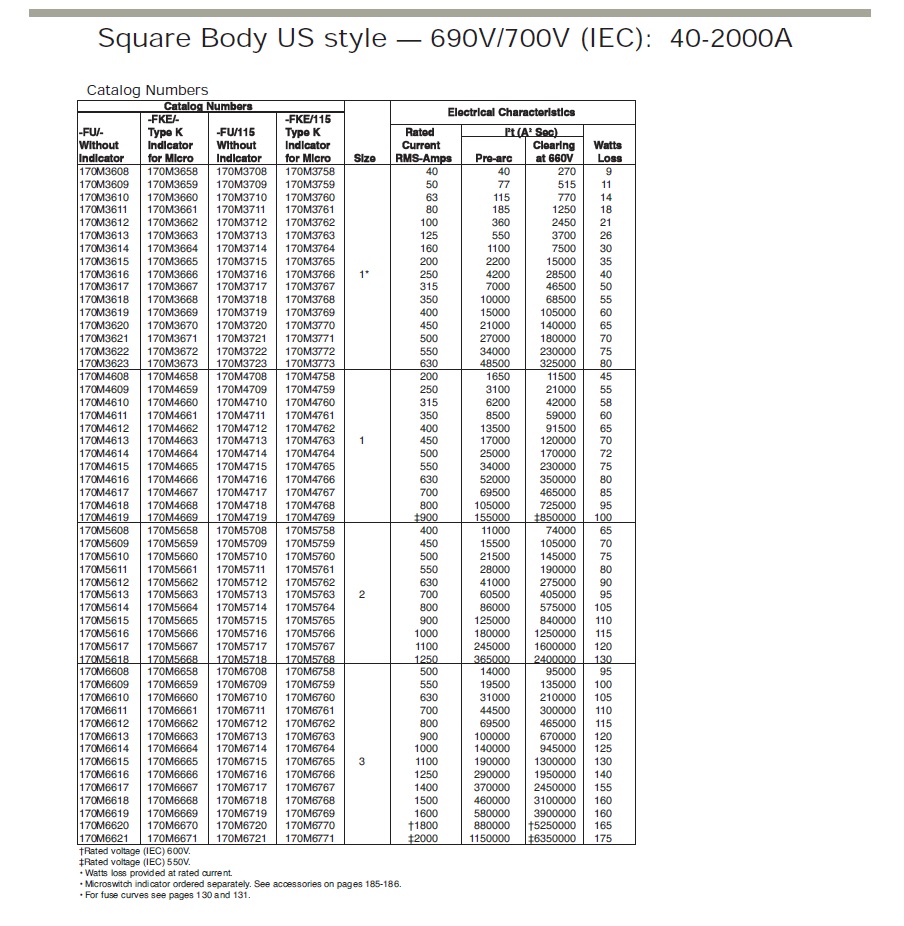

Tube 1 * 45 * 45mm, installation method: American style installation
Voltage: 690V Current 40A 170M3608 170M3658 170M3708 170M3758
Voltage: 690V Current 50A 170M3609 170M3659 170M3709 170M3759
Voltage: 690V Current: 63A 170M3610 170M3660 170M3710 170M3760
Voltage: 690V Current 80A 170M3611 170M3661 170M3711 170M3761
Voltage: 690V Current: 100A 170M3612 170M3662 170M3712 170M3762
Voltage: 690V Current: 125A 170M3613 170M3663 170M3713 170M3763
Voltage: 690V Current: 160A 170M3614 170M3664 170M3714 170M3764
Voltage: 690V Current 200A 170M3615 170M3665 170M3715 170M3765
Voltage: 690V Current: 250A 170M3616 170M3666 170M3716 170M3766
Voltage: 690V Current: 315A 170M3617 170M3667 170M3717 170M3767
Voltage: 690V Current: 350A 170M3618 170M3668 170M3718 170M3768
Voltage: 690V Current 400A 170M3619 170M3669 170M3719 170M3769
Voltage: 690V Current: 450A 170M3620 170M3670 170M3720 170M3770
Voltage: 690V Current: 500A 170M3621 170M3671 170M3721 170M3771
Voltage: 690V Current 550A 170M3622 170M3672 170M3722 170M3772
Voltage: 690V Current: 630A 170M3623 170M3673 170M3723 170M3773
Tube 1 53 * 53mm, installation method: American style installation
Voltage: 690V Current: 200A 170M4608 170M4658 170M4708 170M4758
Voltage: 690V Current: 250A 170M4609 170M4659 170M4709 170M4759
Voltage: 690V Current: 315A 170M4610 170M4660 170M4710 170M4760
Voltage: 690V Current: 350A 170M4611 170M4661 170M4711 170M4761
Voltage: 690V Current 400A 170M4612 170M4662 170M4712 170M4762
Voltage: 690V Current: 450A 170M4613 170M4663 170M4713 170M4763
Voltage: 690V Current: 500A 170M4614 170M4664 170M4714 170M4764
Voltage: 690V Current: 550A 170M4615 170M4665 170M4715 170M4765
Voltage: 690V Current: 630A 170M4616 170M4666 170M4716 170M4766
Voltage: 690V Current: 700A 170M4617 170M4667 170M4717 170M4767
Voltage: 690V Current: 800A 170M4618 170M4668 170M4718 170M4768
Voltage: 550V Current: 900A 170M4619 170M4669 170M4719 170M4769
Pipe No. 2 61 * 61mm, installation method: American style installation
Voltage: 690V Current 400A 170M5608 170M5658 170M5708 170M5758
Voltage: 690V Current: 450A 170M5609 170M5659 170M5709 170M5759
Voltage: 690V Current: 500A 170M5610 170M5660 170M5710 170M5760
Voltage: 690V Current: 550A 170M5611 170M5661 170M5711 170M5761
Voltage: 690V Current: 630A 170M5612 170M5662 170M5712 170M5762
Voltage: 690V Current: 700A 170M5613 170M5663 170M5713 170M5763
Voltage: 690V Current: 800A 170M5614 170M5664 170M5714 170M5764
Voltage: 690V Current: 900A 170M5615 170M5665 170M5715 170M5765
Voltage: 690V Current: 1000A 170M5616 170M5666 170M5716 170M5766
Voltage: 690V Current: 1100A 170M5617 170M5667 170M5717 170M5767
Voltage: 690V Current: 1250A 170M5618 170M5668 170M5718 170M5768
Pipe No. 3 76 * 76mm, installation method: American style installation
Voltage: 690V Current: 500A 170M6608 170M6658 170M6708 170M6758
Voltage: 690V Current 550A 170M6609 170M6659 170M6709 170M6759
Voltage: 690V Current 630A 170M6610 170M6660 170M6710 170M6760
Voltage: 690V Current: 700A 170M6611 170M6661 170M6711 170M6761
Voltage: 690V Current: 800A 170M6612 170M6662 170M6712 170M6762
Voltage: 690V Current: 900A 170M6613 170M6663 170M6713 170M6763
Voltage: 690V Current: 1000A 170M6614 170M6664 170M6714 170M6764
Voltage: 690V Current: 1100A 170M6615 170M6665 170M6715 170M6765
Voltage: 690V Current: 1250A 170M6616 170M6666 170M6716 170M6766
Voltage: 690V Current: 1400A 170M6617 170M6667 170M6717 170M6767
Voltage: 690V Current: 1500A 170M6618 170M6668 170M6718 170M6768
Voltage: 690V Current: 1600A 170M6619 170M6669 170M6719 170M6769
Voltage: 600V Current 1800A 170M6620 170M6670 170M6720 170M6770
Voltage: 550V Current: 2000A 170M6621 170M6671 170M6721 170M6771
The breaking capacity is 200KA (estimated to be 300KA) RMS symmetrical.
The power loss is the power loss value at rated current.
Micro switch indicator can be ordered separately.
