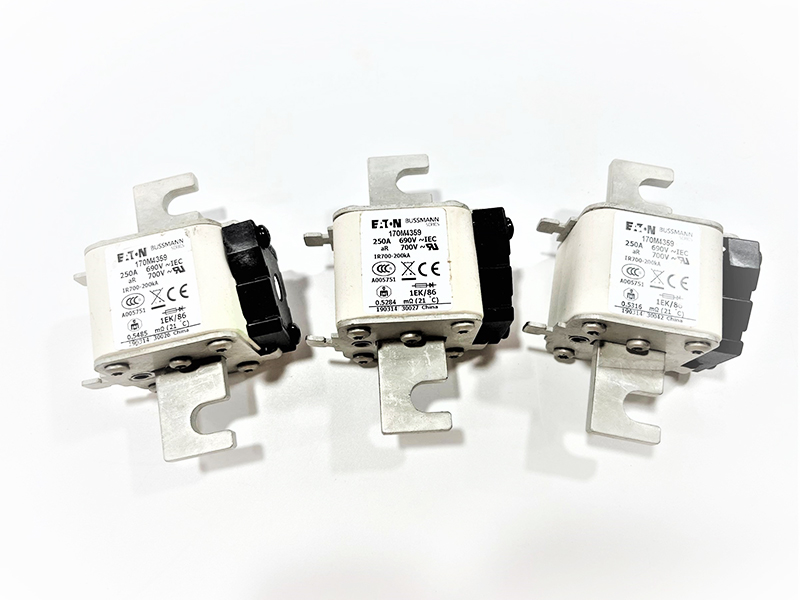

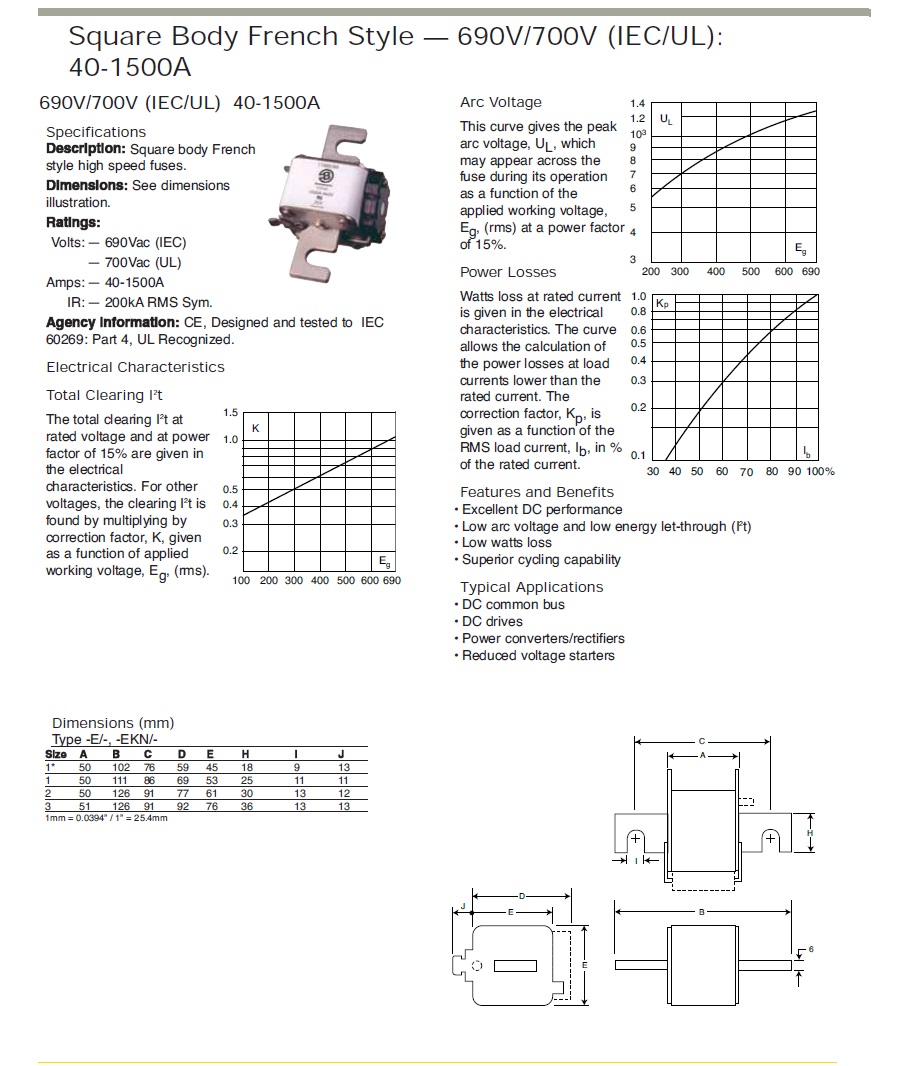

Product Name: European Standard 170M4310 690V/700V (50-1400A)
Product parameters and model:
European Standard Square Series - French
Voltage: 690V/700V
Current: 50-1400A
Size: 1 * Tube: 45 * 45mm 1 * Tube: 53 * 53mm 2 * Tube: 61 * 61mm 3 * Tube: 76 * 76mm
Breaking capacity: 200KA RMS symmetrical
Installation method: French installation

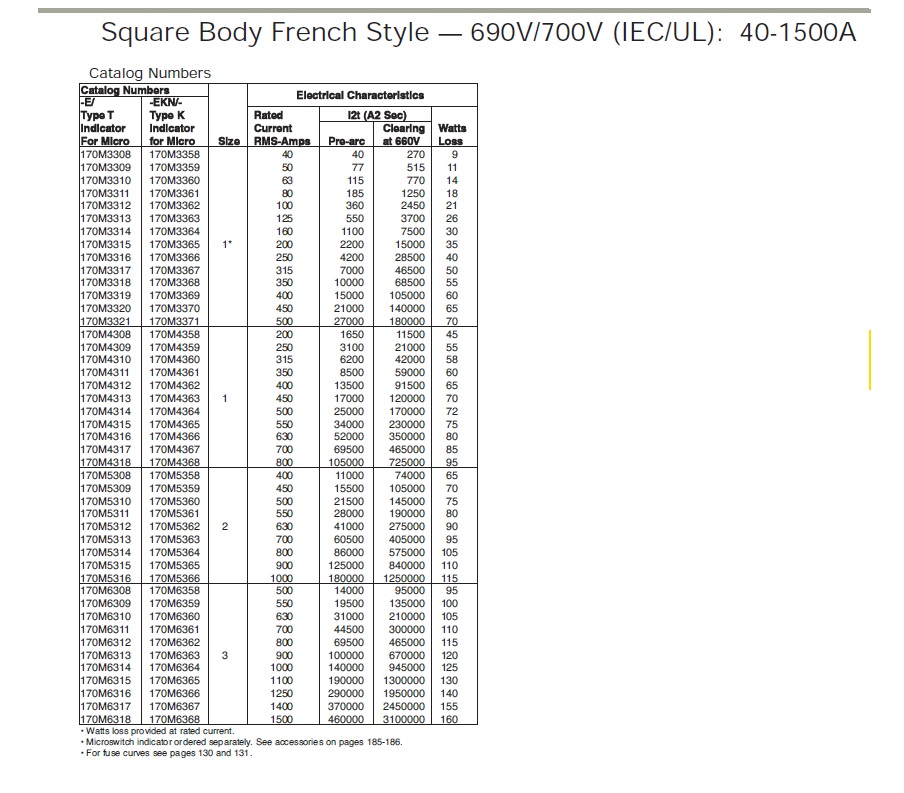

Tube 1 * 45 * 45mm, installation method: French installation:
Voltage: 690V Current: 40A 170M3308 170M3358
Voltage: 690V Current: 50A 170M3309 170M3359
Voltage: 690V Current: 63A 170M3310 170M3360
Voltage: 690V Current: 80A 170M3311 170M3361
Voltage: 690V Current: 100A 170M3312 170M3362
Voltage: 690V Current: 125A 170M3313 170M3363
Voltage: 690V Current: 160A 170M3314 170M3364
Voltage: 690V Current: 200A 170M3315 170M3365
Voltage: 690V Current: 250A 170M3316 170M3366
Voltage: 690V Current: 315A 170M3317 170M3367
Voltage: 690V Current: 350A 170M3318 170M3368
Voltage: 690V Current: 400A 170M3319 170M3369
Voltage: 690V Current: 450A 170M3320 170M3370
Voltage: 690V Current: 500A 170M3321 170M3371
Tube 1 53 * 53mm, installation method: French installation:
Voltage: 690V Current: 200A 170M4308 170M4358
Voltage: 690V Current: 250A 170M4309 170M4359
Voltage: 690V Current: 315A 170M4310 170M4360
Voltage: 690V Current: 350A 170M4311 170M4361
Voltage: 690V Current: 400A 170M4312 170M4362
Voltage: 690V Current: 450A 170M4313 170M4363
Voltage: 690V Current: 500A 170M4314 170M4364
Voltage: 690V Current: 630A 170M4315 170M4365
Voltage: 690V Current: 700A 170M4316 170M4366
Voltage: 690V Current: 800A 170M4317 170M4367
Voltage: 690V Current: 900A 170M4318 170M4368
Voltage: 690V Current: 1000A 170M4319 170M4369
Pipe No. 2 61 * 61mm, installation method: French installation:
Voltage: 690V Current: 400A 170M5308 170M5358
Voltage: 690V Current: 450A 170M5309 170M5359
Voltage: 690V Current: 500A 170M5310 170M5360
Voltage: 690V Current: 550A 170M5311 170M5361
Voltage: 690V Current: 630A 170M5312 170M5362
Voltage: 690V Current: 700A 170M5313 170M5363
Voltage: 690V Current: 800A 170M5314 170M5364
Voltage: 690V Current: 900A 170M5315 170M5365
Voltage: 690V Current: 1000A 170M5316 170M5366
Pipe No. 3 76 * 76mm, installation method: French installation
Voltage: 690V Current: 500A 170M6308 170M6358
Voltage: 690V Current: 550A 170M6309 170M6359
Voltage: 690V Current: 630A 170M6310 170M6360
Voltage: 690V Current: 700A 170M6311 170M6361
Voltage: 690V Current: 800A 170M6312 170M6362
Voltage: 690V Current: 900A 170M6313 170M6363
Voltage: 690V Current: 1000A 170M6314 170M6364
Voltage: 690V Current: 1100A 170M6315 170M6365
Voltage: 690V Current: 1250A 170M6316 170M6366
Voltage: 690V Current: 1400A 170M6317 170M6367
Voltage: 690V Current: 1500A 170M6318 170M6368
The breaking capacity is 200KA (estimated to be 300KA) RMS symmetrical.
The power loss is the power loss value at rated current.
Micro switch indicator can be ordered separately.
