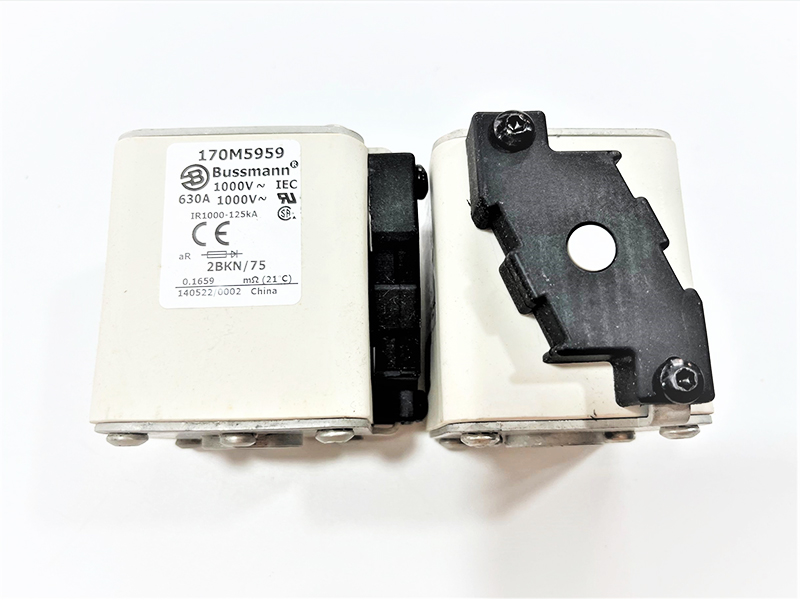

Product Name: European Standard 170M5959 1000V (50-1400A)
Product parameters and model:

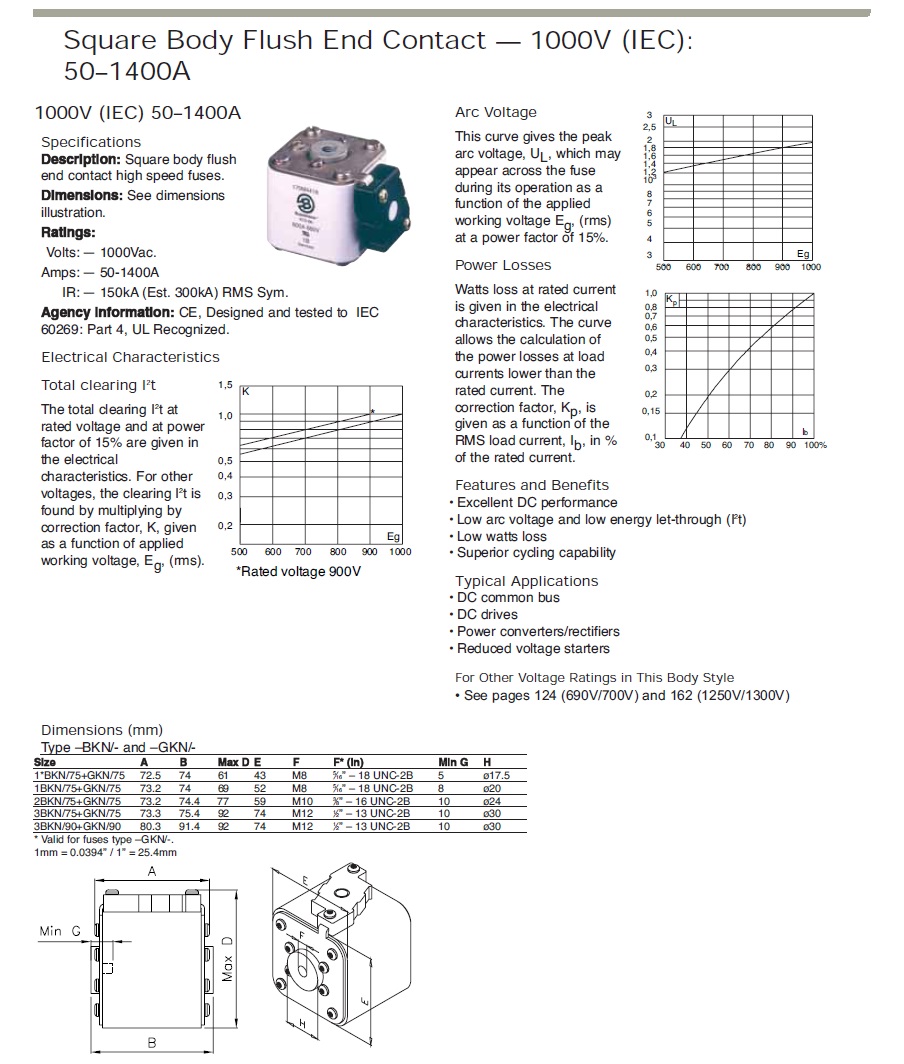

European standard square body series - flat end installation type
Voltage: 1000V
Current: 50-1400A
Size: 1 * Tube: 45 * 45mm 1 * Tube: 53 * 53mm 2 * Tube: 61 * 61mm 3 * Tube: 76 * 76mm
Breaking capacity: 150KA RMS symmetrical
Installation method: Flat end installation

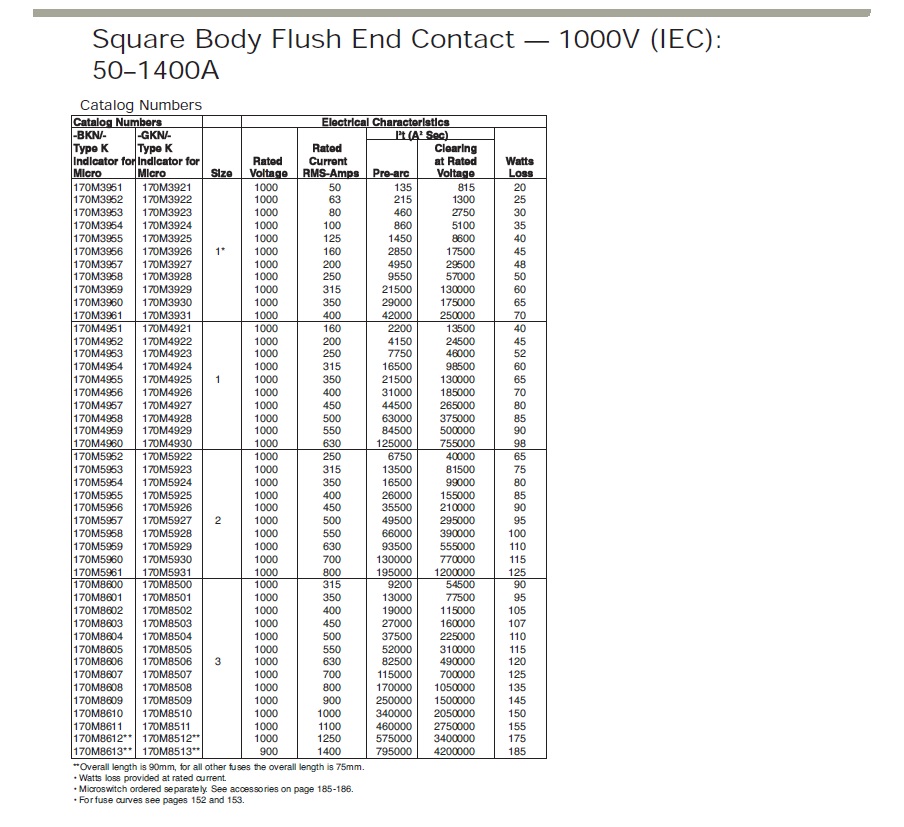

1 * pipe 45 * 45mm, installation method: flat end installation type:
Voltage: 1000V Current: 50A 170M3951 170M3921
Voltage: 1000V Current: 63A 170M3952 170M3922
Voltage: 1000V Current: 80A 170M3953 170M3923
Voltage: 1000V Current: 100A 170M3954 170M3924
Voltage: 1000V Current: 125A 170M3955 170M3925
Voltage: 1000V Current: 160A 170M3956 170M3926
Voltage: 1000V Current: 200A 170M3957 170M3927
Voltage: 1000V Current: 250A 170M3958 170M3928
Voltage: 1000V Current: 315A 170M3959 170M3929
Voltage: 1000V Current: 350A 170M3960 170M3930
Voltage: 1000V Current: 400A 170M3961 170M3931
Tube 1 53 * 53mm, installation method: flat end installation type:
Voltage: 1000V Current: 160A 170M4951 170M4921
Voltage: 1000V Current: 200A 170M4952 170M4922
Voltage: 1000V Current: 250A 170M4953 170M4923
Voltage: 1000V Current: 315A 170M4954 170M4924
Voltage: 1000V Current: 350A 170M4955 170M4925
Voltage: 1000V Current: 400A 170M4956 170M4926
Voltage: 1000V Current: 450A 170M4957 170M4927
Voltage: 1000V Current: 500A 170M4958 170M4928
Voltage: 1000V Current: 550A 170M4959 170M4929
Voltage: 1000V Current: 630A 170M4960 170M4930
Pipe No. 2 61 * 61mm, installation method: flat end installation type:
Voltage: 1000V Current: 250A 170M5952 170M5922
Voltage: 1000V Current: 315A 170M5953 170M5923
Voltage: 1000V Current: 350A 170M5954 170M5924
Voltage: 1000V Current: 400A 170M5955 170M5925
Voltage: 1000V Current: 450A 170M5956 170M5926
Voltage: 1000V Current: 500A 170M5957 170M5927
Voltage: 1000V Current: 550A 170M5958 170M5928
Voltage: 1000V Current: 630A 170M5959 170M5929
Voltage: 1000V Current: 700A 170M5960 170M5930
Voltage: 1000V Current: 800A 170M5961 170M5931
Pipe No. 3 76 * 76mm, installation method: flat end installation type:
Voltage: 1000V Current: 315A 170M8600 170M8500
Voltage: 1000V Current: 350A 170M8601 170M8501
Voltage: 1000V Current: 400A 170M8602 170M8502
Voltage: 1000V Current: 450A 170M8603 170M8503
Voltage: 1000V Current: 500A 170M8604 170M8504
Voltage: 1000V Current: 550A 170M8605 170M8505
Voltage: 1000V Current: 630A 170M8606 170M8506
Voltage: 1000V Current: 700A 170M8607 170M8507
Voltage: 1000V Current: 800A 170M8608 170M8508
Voltage: 1000V Current: 900A 170M8609 170M8509
Voltage: 1000V Current: 1000A 170M8610 170M8510
Voltage: 1000V Current: 1100A 170M8611 170M8511
Voltage: 1000V Current: 1250A 170M8612 * 170M8512*
Voltage: 900V Current: 1400A 170M8613 * 170M8513*
The breaking capacity is 200KA (estimated to be 300KA) RMS symmetrical.
The power loss is the power loss value at rated current.
Micro switch indicator can be ordered separately.
