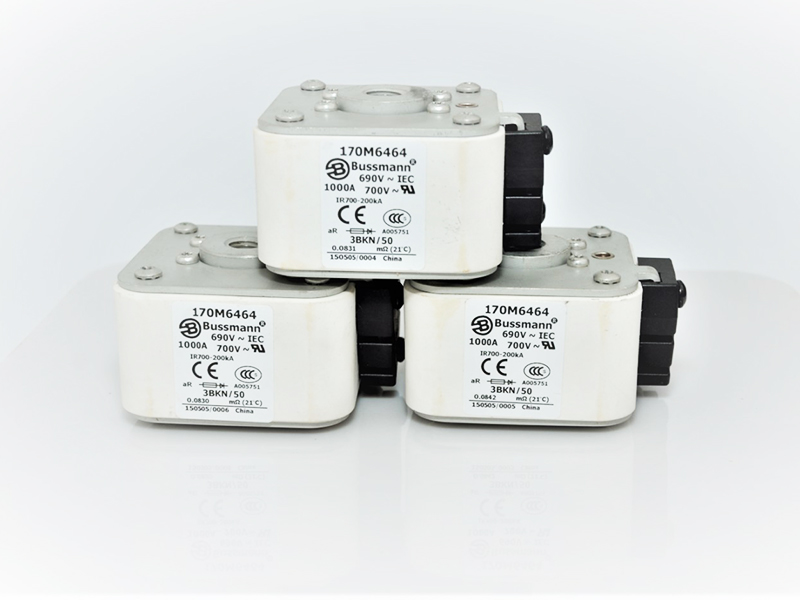

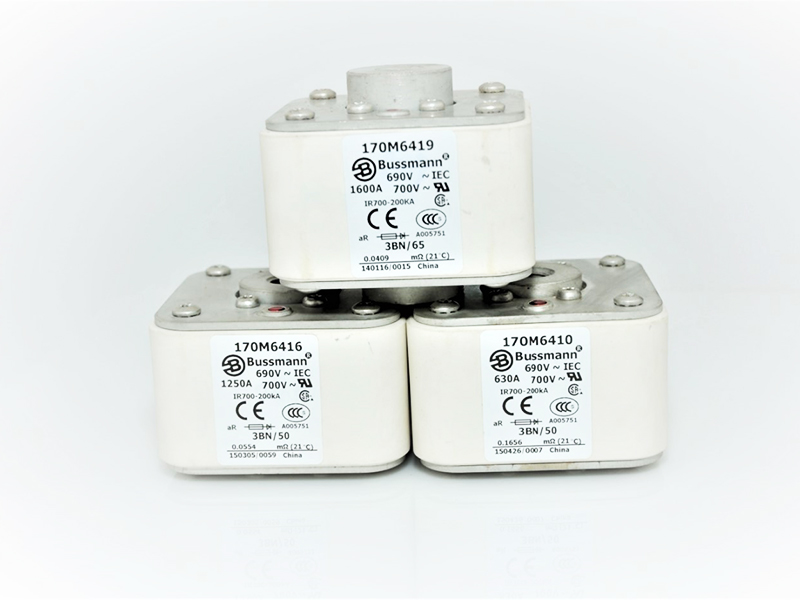

Product Name: European Standard 170M 680V/700V (40-2000A) Flat End Installation

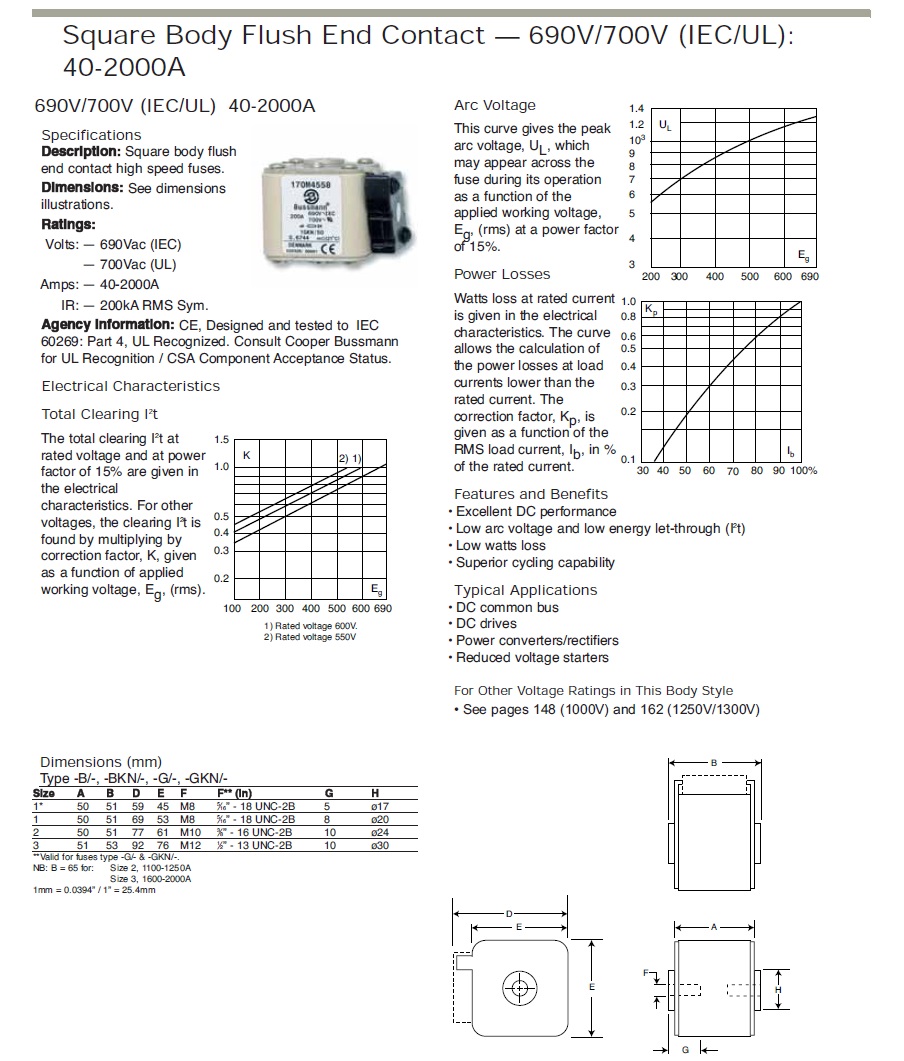

Product parameters and model:
European standard square body series - flat end installation type
Voltage: 690V/700V
Current: 40-2000A
Size: 1 * Tube: 45 * 45mm 1 * Tube: 53 * 53mm 2 * Tube: 61 * 61mm 3 * Tube: 76 * 76mm
Breaking capacity: 200KA RMS symmetrical
Installation method: Flat end installation

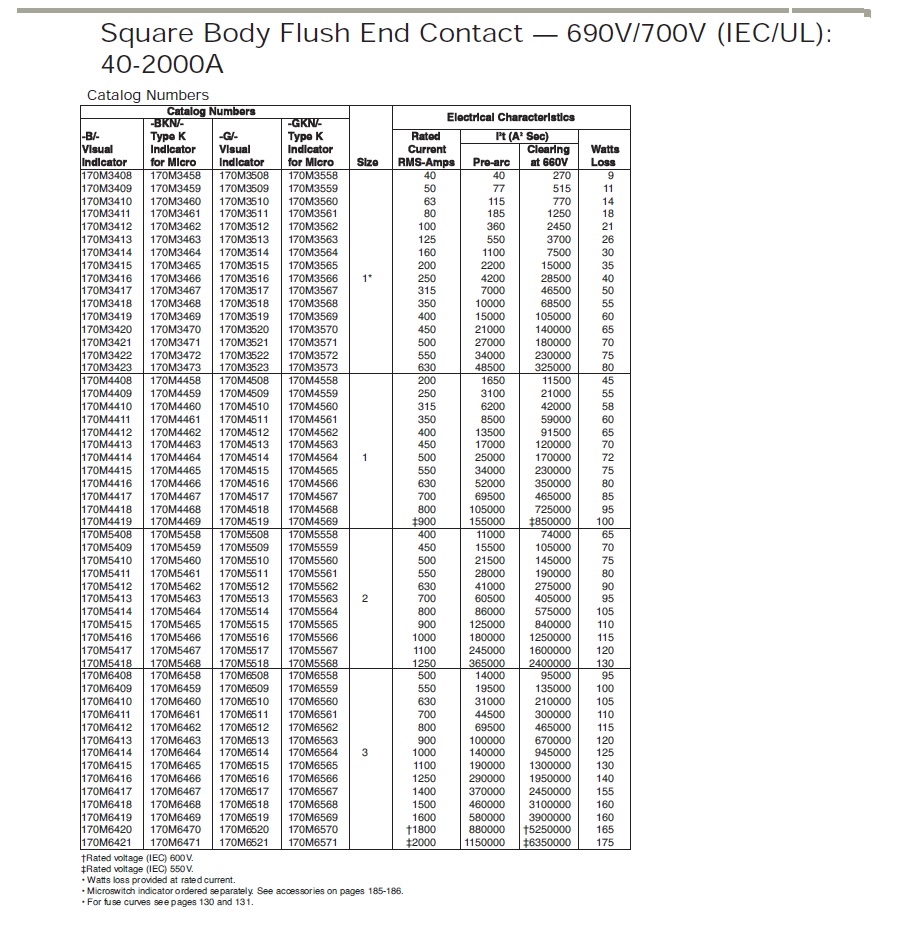

1 * pipe 45 * 45mm, installation method: flat end installation type:
Voltage: 690V Current: 40A 170M3408 170M3458 170M3508 170M3558
Voltage: 690V Current: 50A 170M3409 170M3459 170M3509 170M3559
Voltage: 690V Current: 63A 170M3410 170M3460 170M3510 170M3560
Voltage: 690V Current: 80A 170M3411 170M3461 170M3511 170M3561
Voltage: 690V Current: 100A 170M3412 170M3462 170M3512 170M3562
Voltage: 690V Current: 125A 170M3413 170M3463 170M3513 170M3563
Voltage: 690V Current: 160A 170M3414 170M3464 170M3514 170M3564
Voltage: 690V Current: 200A 170M3415 170M3465 170M3515 170M3565
Voltage: 690V Current: 250A 170M3416 170M3466 170M3516 170M3566
Voltage: 690V Current: 315A 170M3417 170M3467 170M3517 170M3567
Voltage: 690V Current: 350A 170M3418 170M3468 170M3518 170M3568
Voltage: 690V Current: 400A 170M3419 170M3469 170M3519 170M3569
Voltage: 690V Current: 450A 170M3420 170M3470 170M3520 170M3570
Voltage: 690V Current: 500A 170M3421 170M3471 170M3521 170M3571
Voltage: 690V Current: 550A 170M3422 170M3472 170M3522 170M3572
Voltage: 690V Current 630A 170M3423 170M3473 170M3523 170M3573
Tube 1 53 * 53mm, installation method: flat end installation type:
Voltage: 690V Current: 200A 170M4408 170M4458 170M4508 170M4558
Voltage: 690V Current: 250A 170M4409 170M4459 170M4509 170M4559
Voltage: 690V Current: 315A 170M4410 170M4460 170M4510 170M4560
Voltage: 690V Current: 350A 170M4411 170M4461 170M4511 170M4561
Voltage: 690V Current: 400A 170M4412 170M4462 170M4512 170M4562
Voltage: 690V Current: 450A 170M4413 170M4463 170M4513 170M4563
Voltage: 690V Current: 500A 170M4414 170M4464 170M4514 170M4564
Voltage: 690V Current: 550A 170M4415 170M4465 170M4515 170M4565
Voltage: 690V Current: 630A 170M4416 170M4466 170M4516 170M4566
Voltage: 690V Current: 700A 170M4417 170M4467 170M4517 170M4567
Voltage: 690V Current: 800A 170M4418 170M4468 170M4518 170M4568
Voltage: 600V Current: 900A 170M4419 170M4469 170M4529 170M4569
Pipe No. 2 61 * 61mm, installation method: flat end installation type:
Voltage: 690V Current: 400A 170M5408 170M5458 170M5508 170M5558
Voltage: 690V Current: 450A 170M5409 170M5459 170M5509 170M5559
Voltage: 690V Current: 500A 170M5410 170M5460 170M5510 170M5560
Voltage: 690V Current: 550A 170M5411 170M5461 170M5511 170M5561
Voltage: 690V Current: 630A 170M5412 170M5462 170M5512 170M5562
Voltage: 690V Current: 700A 170M5413 170M5463 170M5513 170M5563
Voltage: 690V Current: 800A 170M5414 170M5464 170M5514 170M5564
Voltage: 690V Current: 900A 170M5415 170M5465 170M5515 170M5565
Voltage: 690V Current: 1000A 170M5416 170M5466 170M5516 170M5566
Voltage: 690V Current: 1100A 170M5417 170M5467 170M5517 170M5567
Voltage: 690V Current: 1250A 170M 5418 170M5468 170M5518 170M5568
Pipe No. 3 76 * 76 mm, installation method: flat end installation type:
Voltage: 690V Current: 500A 170M6408 170M6458 170M6508 170M6558
Voltage: 690V Current: 550A 170M6409 170M6459 170M6509 170M6559
Voltage: 690V Current: 630A 170M6410 170M6460 170M6510 170M6560
Voltage: 690V Current: 700A 170M6411 170M6461 170M6511 170M6561
Voltage: 690V Current: 800A 170M6412 170M6462 170M6512 170M6562
Voltage: 690V Current: 900A 170M6413 170M6463 170M6513 170M6563
Voltage: 690V Current: 1000A 170M6414 170M6464 170M6514 170M6564
Voltage: 690V Current: 1100A 170M6415 170M6465 170M6515 170M6565
Voltage: 690V Current: 1250A 170M6416 170M6466 170M6516 170M6566
Voltage: 690V Current: 1400A 170M6417 170M6467 170M6517 170M6567
Voltage: 690V Current: 1500A 170M6418 170M6468 170M6518 170M6568
Voltage: 690V Current: 1600A 170M6419 170M6469 170M6519 170M6569
Voltage: 600V Current: † 1800A 170M6420 170M6470 170M6520 170M6570
Voltage: 550V Current: ‡ 2000A 170M6420 170M6471 170M6521 170M6571
The breaking capacity is 200KA (estimated to be 300KA) RMS symmetrical.
The power loss is the power loss value at rated current.
Micro switch indicator can be ordered separately.
