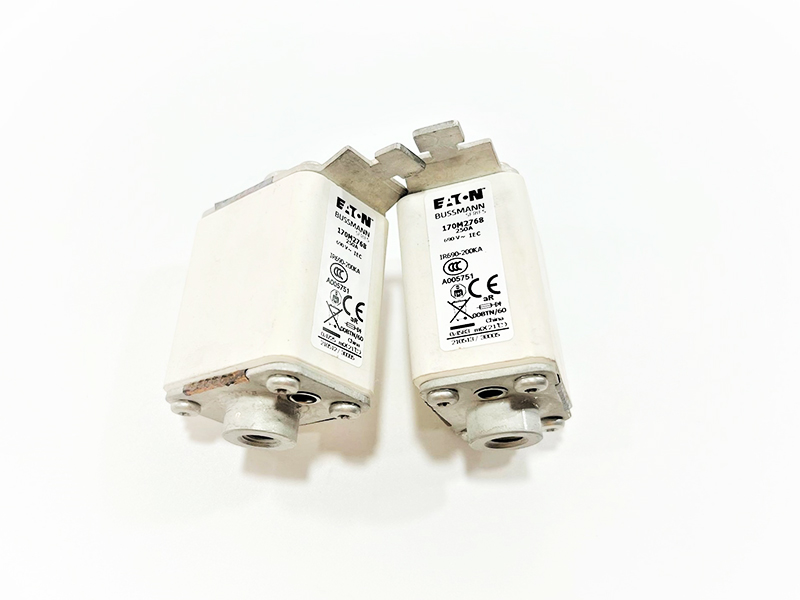

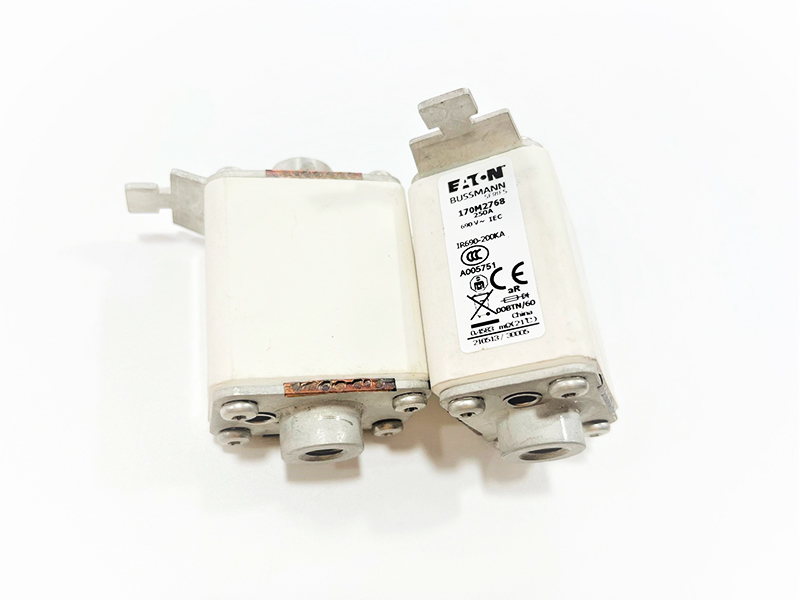

170M2768 690V(25-400A)
Bussmann offers a full range of square fuses and accessories. The product design and construction are unique, with the following characteristics:
1. Joule integral flux (I2t) minimum
2. Low operating temperature
3. Low power loss
Square fuses are suitable for applications that require compact structure, superior performance, and high power. Its structure and design facilitate customized production according to customer requirements.
Each type of square fuse is equipped with unused terminal accessories, and the available varieties include:
DIN 43635 (hook hairpin type) 690V 1000V 1250V
DIN 43620 (blade type) 690V 1000V
Flat end installation type: 690V 1000V 1250V
French: 690V
American: 690V 1000V 1250V
