170M38/58/68 690V/700V(40-1000A)

Bussmann offers a full range of square fuses and accessories. The product design and construction are unique, with the following characteristics:

1. Joule integral flux (I2t) minimum

2. Low operating temperature

3. Low power loss

Square fuses are suitable for applications that require compact structure, superior performance, and high power. Its structure and design facilitate customized production according to customer requirements.

Each type of square fuse is equipped with unused terminal accessories, and the available varieties include:

DIN 43635 (hook hairpin type) 690V 1000V 1250V

DIN 43620 (blade type) 690V 1000V

Flat end installation type: 690V 1000V 1250V

French: 690V

American: 690V 1000V 1250V

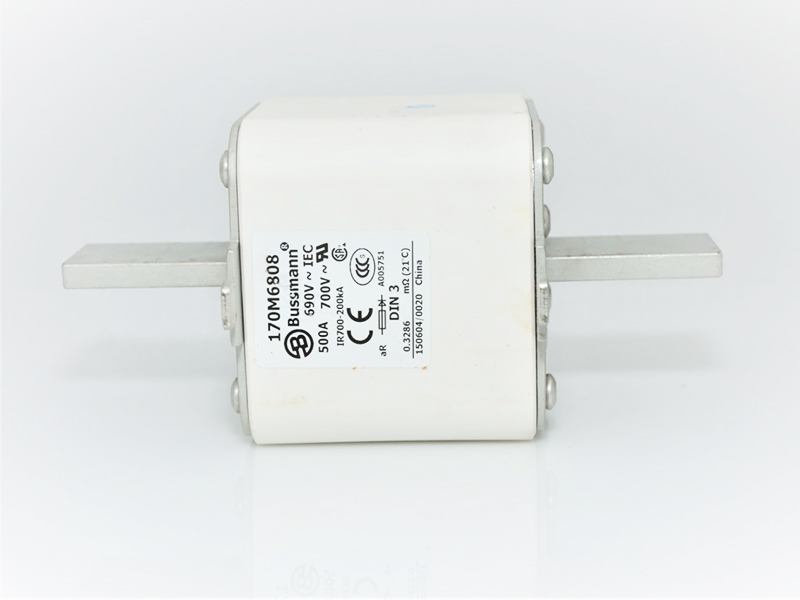

Product Name: European Standard 170M38/58/68 690V/700V (40-1000A)

Product parameters and model:

European standard square series DIN43620

Voltage: 690V

Current: 40-1000A

Size: 1 * Tube: 45 * 45mm 2 * Tube: 61 * 61mm 3 * Tube: 76 * 76mm

Breaking capacity: 200KA RMS symmetrical

Installation method: plug-in type

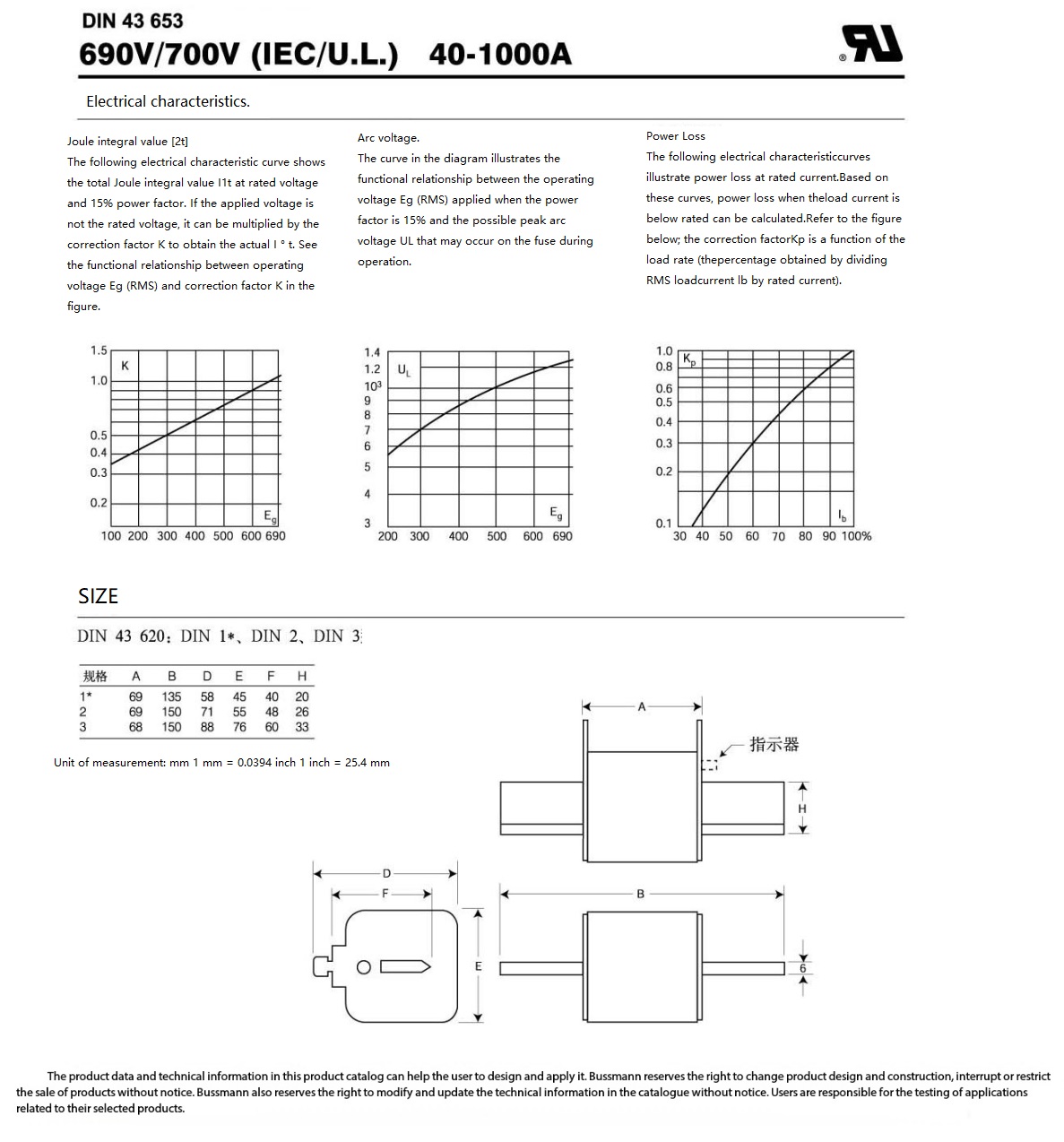

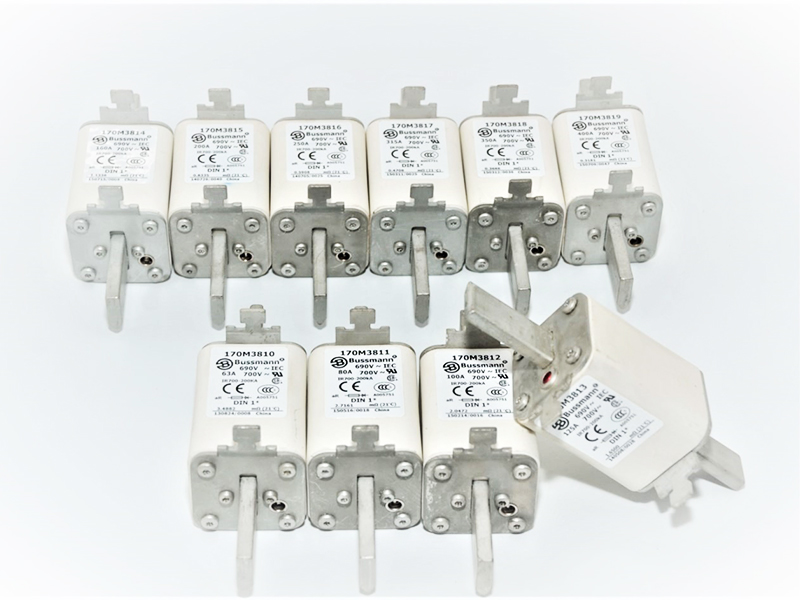

Tube 1 * 45 * 45mm, installation method: plug-in:

Voltage: 690V Current: 40A 170M3808

Voltage: 690V Current: 50A 170M3809

Voltage: 690V Current: 63A 170M3810

Voltage: 690V Current: 80A 170M3811

Voltage: 690V Current: 100A 170M3812

Voltage: 690V Current: 125A 170M3813

Voltage: 690V Current: 160A 170M3814

Voltage: 690V Current: 200A 170M3815

Voltage: 690V Current: 250A 170M3816

Voltage: 690V Current: 315A 170M3817

Voltage: 690V Current: 350A 170M3818

Voltage: 690V Current: 400A 170M3819

Pipe No. 2 61 * 61mm, installation method: plug-in type:

Voltage: 690V Current: 400A 170M5808

Voltage: 690V Current: 450A 170M5809

Voltage: 690V Current: 500A 170M5810

Voltage: 690V Current: 550A 170M5811

Voltage: 690V Current: 630A 170M5812

Voltage: 690V Current: 700A 170M5813

Pipe No. 3 76 * 76 mm, installation method: plug-in type:

Voltage: 690V Current: 500A 170M6808

Voltage: 690V Current: 550A 170M6809

Voltage: 690V Current: 630A 170M6810

Voltage: 690V Current: 700A 170M6811

Voltage: 690V Current: 800A 170M6812

Voltage: 690V Current: 900A 170M6813

Voltage: 690V Current: 1000A 170M6814

The breaking capacity is 200KA (estimated to be 300KA) RMS symmetrical.

The power loss is the power loss value at rated current.

Micro switch indicator can be ordered separately.
