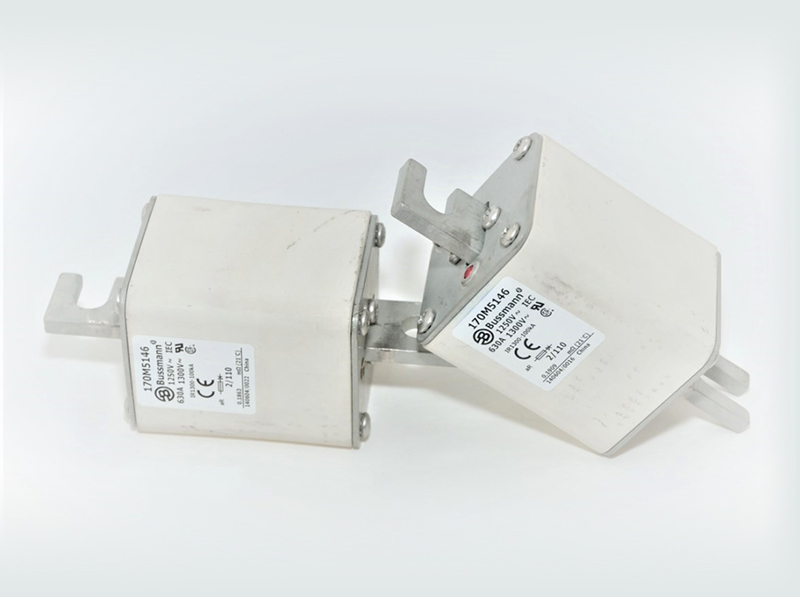

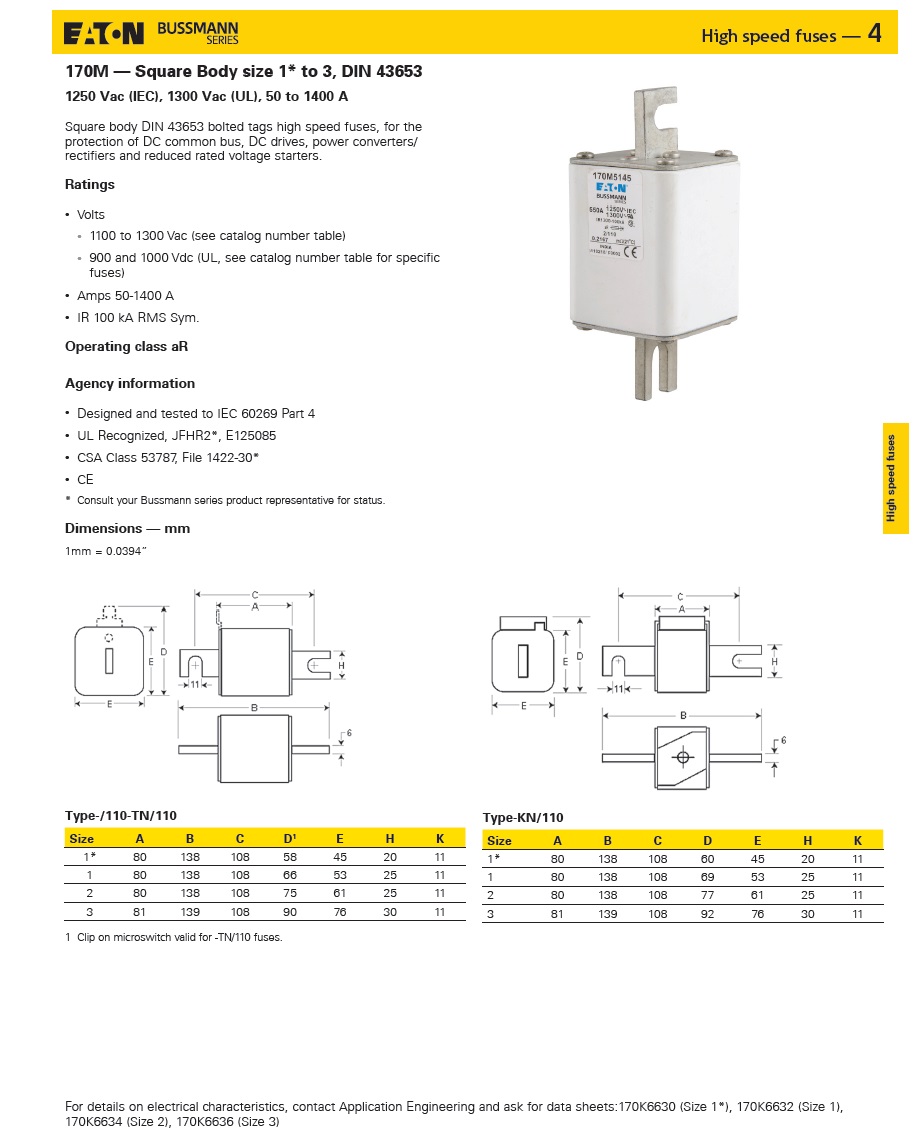

Product Name: European Standard 170M5146 1250V/1300V (50-1400A)
Product parameters and model:
European standard square series DIN43653
Voltage: 1250V/1300V
Current: 50-1400A
Size: 1 * Tube: 45 * 45mm 1 * Tube: 53 * 53mm 2 * Tube: 61 * 61mm 3 * Tube: 76 * 76mm
Breaking capacity: 100KA RMS symmetrical
Installation method: intermediate busbar type

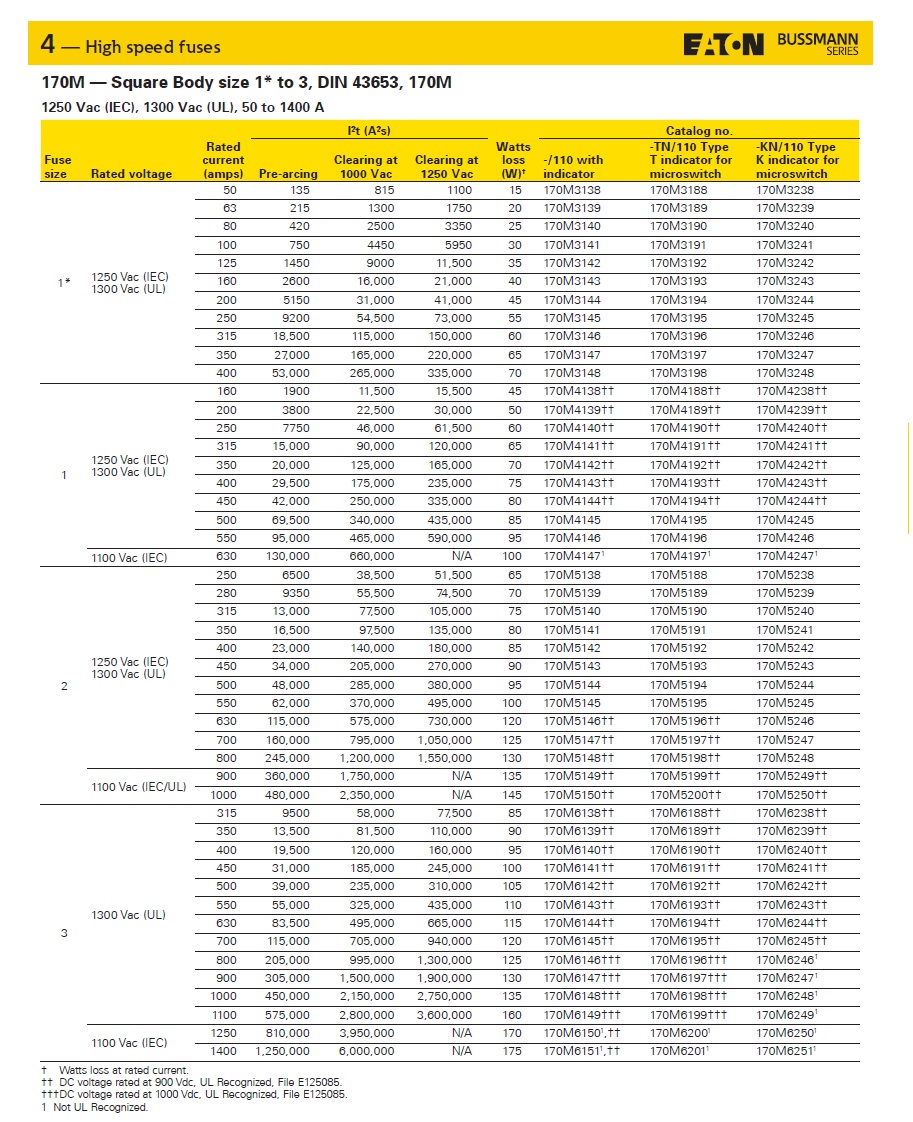

Tube 1 * 45 * 45mm, installation method: middle busbar type:
Voltage: 1250V Current: 50A 170M3138170M3188170M3238
Voltage: 1250V Current: 63A 170M3139170M3180170M3239
Voltage: 1250V Current: 80A 170M3140170M3190170M3240
Voltage: 1250V Current: 100A 170M3141170M3191170M3241
Voltage: 1250V Current: 125A 170M3142170M3192170M3242
Voltage: 1250V Current: 160A 170M3143 170M3193 170M3243
Voltage: 1250V Current: 200A 170M3144, 170M3194, 170M3244
Voltage: 1250V Current: 250A 170M3145170M3195170M3245
Voltage: 1250V Current: 315A 170M3146170M3196170M3246
Voltage: 1250V Current: 350A 170M3147170M3197170M3247
Voltage: 1250V Current: 400A 170M3148170M3198170M3248
Tube 1 53 * 53mm, installation method: middle busbar type:
Voltage: 1250V Current: 160A 170M4138 170M4188 170M4238
Voltage: 1250V Current: 200A 170M4139 170M4189 170M4239
Voltage: 1250V Current: 250A 170M4140 170M4190 170M4240
Voltage: 1250V Current: 315A 170M4141 170M4191 170M4241
Voltage: 1250V Current: 350A 170M4142 170M4192 170M4242
Voltage: 1250V Current: 400A 170M4143 170M4193 170M4243
Voltage: 1250V Current: 450A 170M4144 170M4194 170M4244
Voltage: 1250V Current: 500A 170M4145 170M4195 170M4245
Voltage: 1250V Current: 550A 170M4146 170M4196 170M4246
Voltage: 1250V Current: † 630A 170M4147 170M4197 170M4247
Pipe No. 2 61 * 61mm, installation method: middle busbar type:
Voltage: 1250V Current: 250A 170M5138 170M5188 170M5238
Voltage: 1250V Current: 280A 170M5139 170M5189 170M5239
Voltage: 1250V Current: 315A 170M5140 170M5190 170M5240
Voltage: 1250V Current: 350A 170M5141 170M5191 170M4241
Voltage: 1250V Current: 400A 170M5142 170M5192 170M4242
Voltage: 1250V Current: 450A 170M5143 170M5193 170M5243

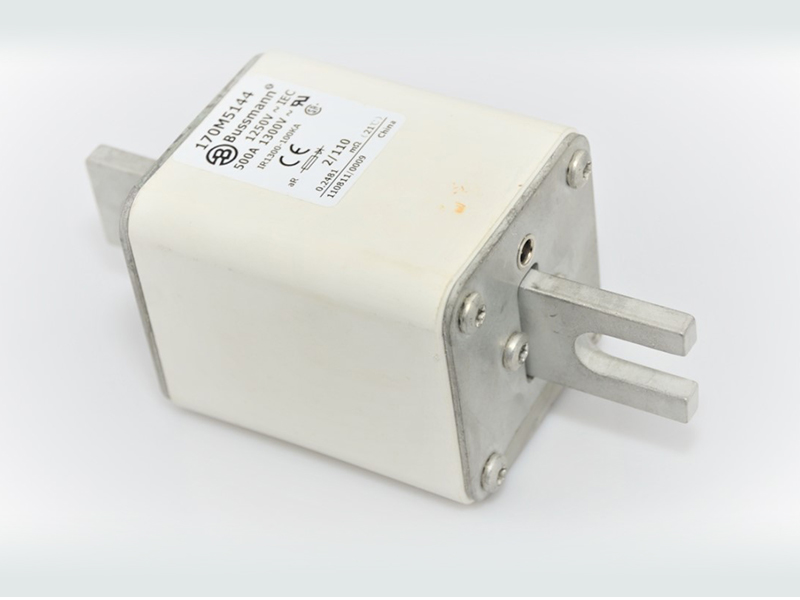

Voltage: 1250V Current: 500A 170M5144 170M5194 170M5244
Voltage: 1250V Current: 550A 170M5145 170M5195 170M5245
Voltage: 1250V Current: 630A 170M5146 170M5196 170M5246
Voltage: 1250V Current: 700A 170M5147 170M5197 170M5247
Voltage: 1250V Current: 800A 170M5148 170M5198 170M5248
Voltage: 1250V Current: † 900A 170M5149 170M5199 170M5249
Voltage: 1250V Current: † 1000A 170M5150 170M5200 170M5250
Pipe No. 3 76 * 76mm, installation method: middle busbar type:
Voltage: 1250V Current: 315A 170M6138 170M6188 170M6238
Voltage: 1250V Current: 350A 170M6139 170M6189 170M6239
Voltage: 1250V Current: 400A 170M6140 170M6190 170M6240
Voltage: 1250V Current: 450A 170M6141 170M6191 170M6241
Voltage: 1250V Current: 500A 170M6142 170M6192 170M6242
Voltage: 1250V Current: 550A 170M6143 170M6193 170M6243
Voltage: 1250V Current: 630A 170M6144 170M6194 170M6244
Voltage: 1250V Current: 700A 170M6145 170M6195 170M6245
Voltage: 1250V Current: 800A 170M6146 170M6196 170M6246
Voltage: 1250V Current: 900A 170M6147 170M6197 170M6247
Voltage: 1250V Current: 1000A 170M6148 170M6198 170M6248
Voltage: 1250V Current: 1100A 170M6149 170M6199 170M6249
Voltage: 1100V Current: 1250A 170M6150 170M6200 170M6250
Voltage: 1100V Current: 1400A 170M6151 170M6201 170M6251
The breaking capacity is 200KA (estimated to be 300KA) RMS symmetrical.
The power loss is the power loss value at rated current.
Micro switch indicator can be ordered separately.
