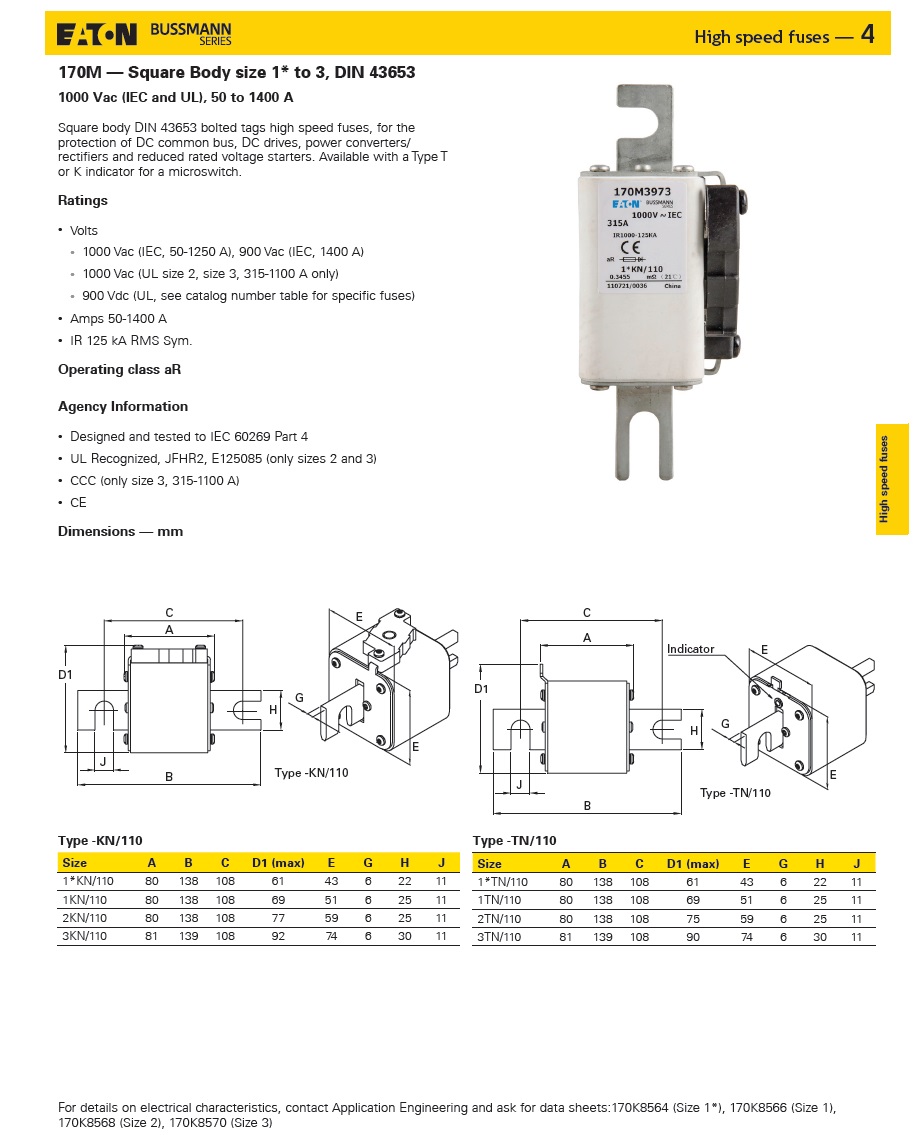

Product Name: European Standard 170M8636 1000V (50-1400A)
Product parameters and model:
DIN43653
Voltage: 1000V
Current: 50-1400A
Size: 1 * Tube: 45 * 45mm 1 * Tube: 53 * 53mm 2 * Tube: 61 * 61mm 3 * Tube: 76 * 76mm
Breaking capacity: 150KA RMS symmetrical
Installation method: intermediate busbar type

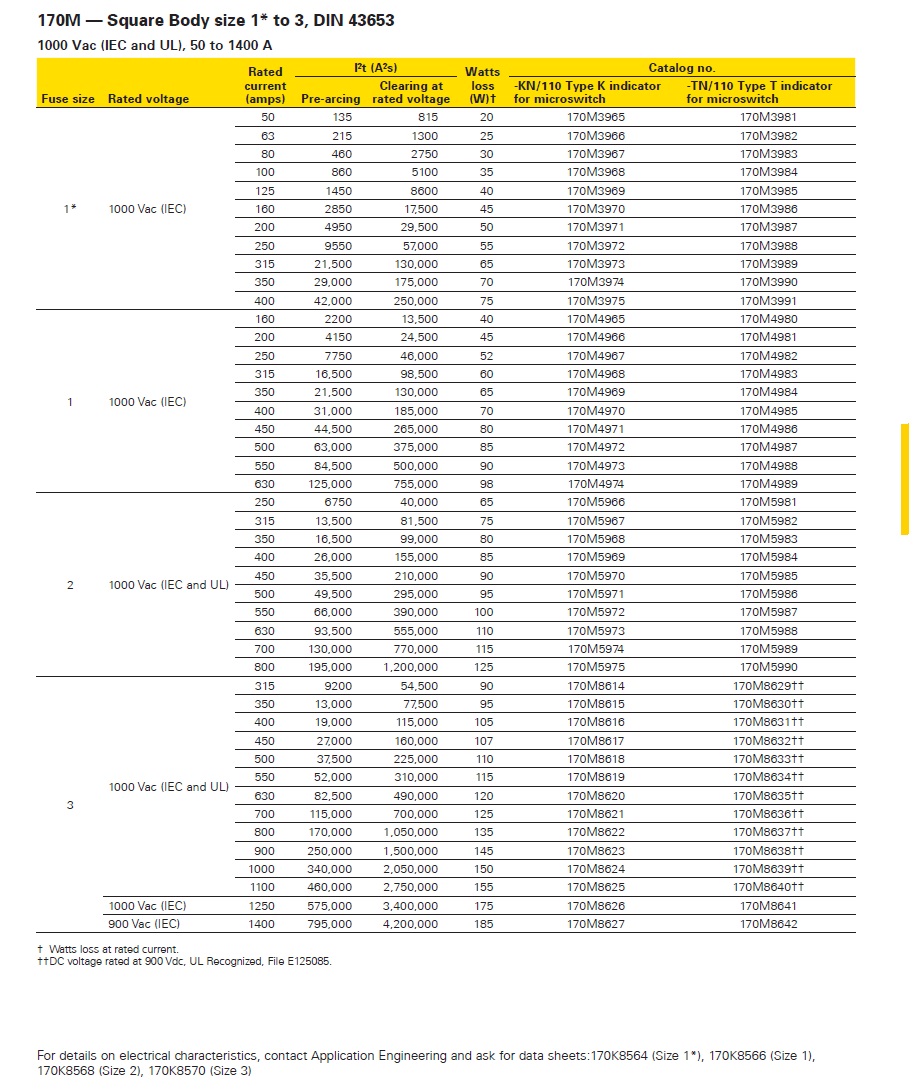

Installation method of 1 * pipe 45 * 45mm: intermediate busbar type:
Voltage: 1000V Current: 50A 170M3965170M3981
Voltage: 1000V Current: 63A 170M3966170M3982
Voltage: 1000V Current: 80A 170M3967170M3983
Voltage: 1000V Current: 100A 170M3968170M3984
Voltage: 1000V Current: 125A 170M3969170M3985
Voltage: 1000V Current: 160A 170M3970170M3986
Voltage: 1000V Current: 200A 170M3971170M3987
Voltage: 1000V Current: 250A 170M3972170M3988
Voltage: 1000V Current: 315A 170M3973170M3989
Voltage: 1000V Current: 350A 170M3974170M3990
Voltage: 1000V Current: 400A 170M3975170M3991
Tube 1 53 * 53mm, installation method: middle busbar type:
Voltage: 1000V Current: 160A 170M4965 170M4980
Voltage: 1000V Current: 200A 170M4966 170M4981
Voltage: 1000V Current: 250A 170M4967 170M4982
Voltage: 1000V Current: 315A 170M4968 170M4983
Voltage: 1000V Current: 350A 170M4969 170M4984
Voltage: 1000V Current: 400A 170M4970 170M4985
Voltage: 1000V Current: 450A 170M4971 170M4986
Voltage: 1000V Current: 500A 170M4972 170M4987
Voltage: 1000V Current: 550A 170M4973 170M4988
Voltage: 1000V Current: 630A 170M4974 170M4989
Pipe No. 2 61 * 61mm, installation method: middle busbar type:
Voltage: 1000V Current: 250A 170M5966 170M5981
Voltage: 1000V Current: 315A 170M5967 170M5982
Voltage: 1000V Current: 350A 170M5968 170M5983
Voltage: 1000V Current: 400A 170M5969 170M5984
Voltage: 1000V Current: 450A 170M5970 170M5985
Voltage: 1000V Current: 500A 170M5971 170M5986
Voltage: 1000V Current: 550A 170M5972 170M5987
Voltage: 1000V Current: 630A 170M5973 170M5988
Voltage: 1000V Current: 700A 170M5974 170M5989
Voltage: 1000V Current: 800A 170M5975 170M5990
Pipe No. 3 76 * 76mm, installation method: middle busbar type:
Voltage: 1000V Current: 315A 170M8614 170M8629
Voltage: 1000V Current: 350A 170M8615 170M8630
Voltage: 1000V Current: 400A 170M8616 170M8631
Voltage: 1000V Current: 450A 170M8617 170M8632
Voltage: 1000V Current: 500A 170M8618 170M8633
Voltage: 1000V Current: 550A 170M8619 170M8634
Voltage: 1000V Current: 630A 170M8620 170M8635
Voltage: 1000V Current: 700A 170M8621 170M8636

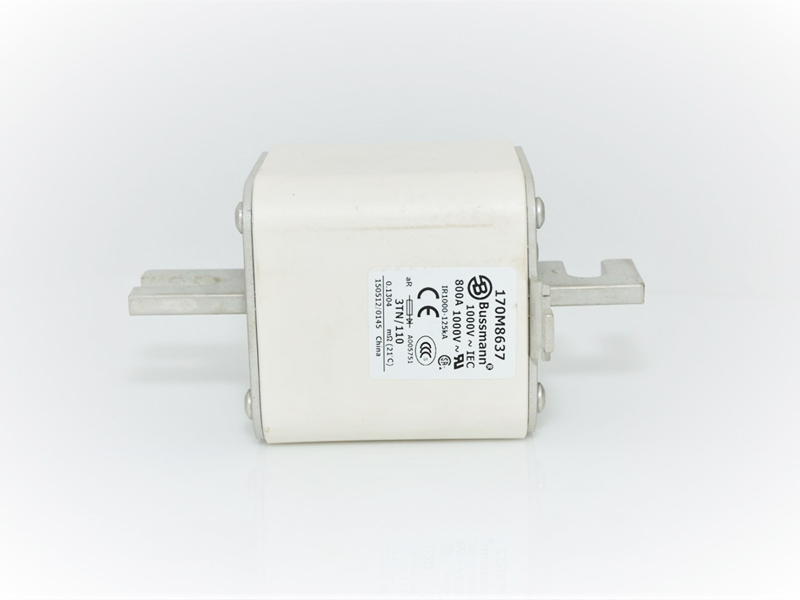

Voltage: 1000V Current: 800A 170M8622 170M8637
Voltage: 1000V Current: 900A 170M8623 170M8638

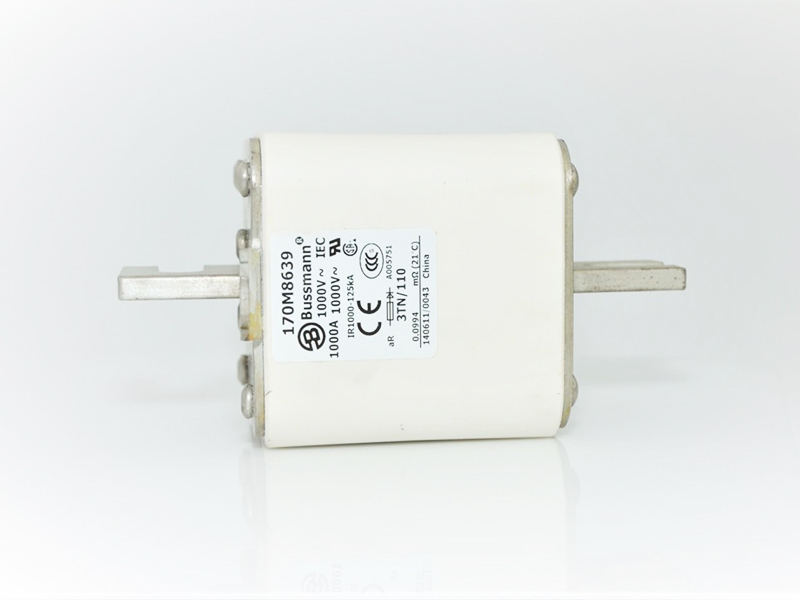

Voltage: 1000V Current: 1000A 170M8624 170M8639
Voltage: 1000V Current: 1100A 170M8625 170M8640
Voltage: 1000V Current: 1250A 170M8626 170M8641
Voltage: 1000V Current: 1400A 170M8627 170M8642
The breaking capacity is 200KA (estimated to be 300KA) RMS symmetrical.
The power loss is the power loss value at rated current.
Micro switch indicator can be ordered separately.
