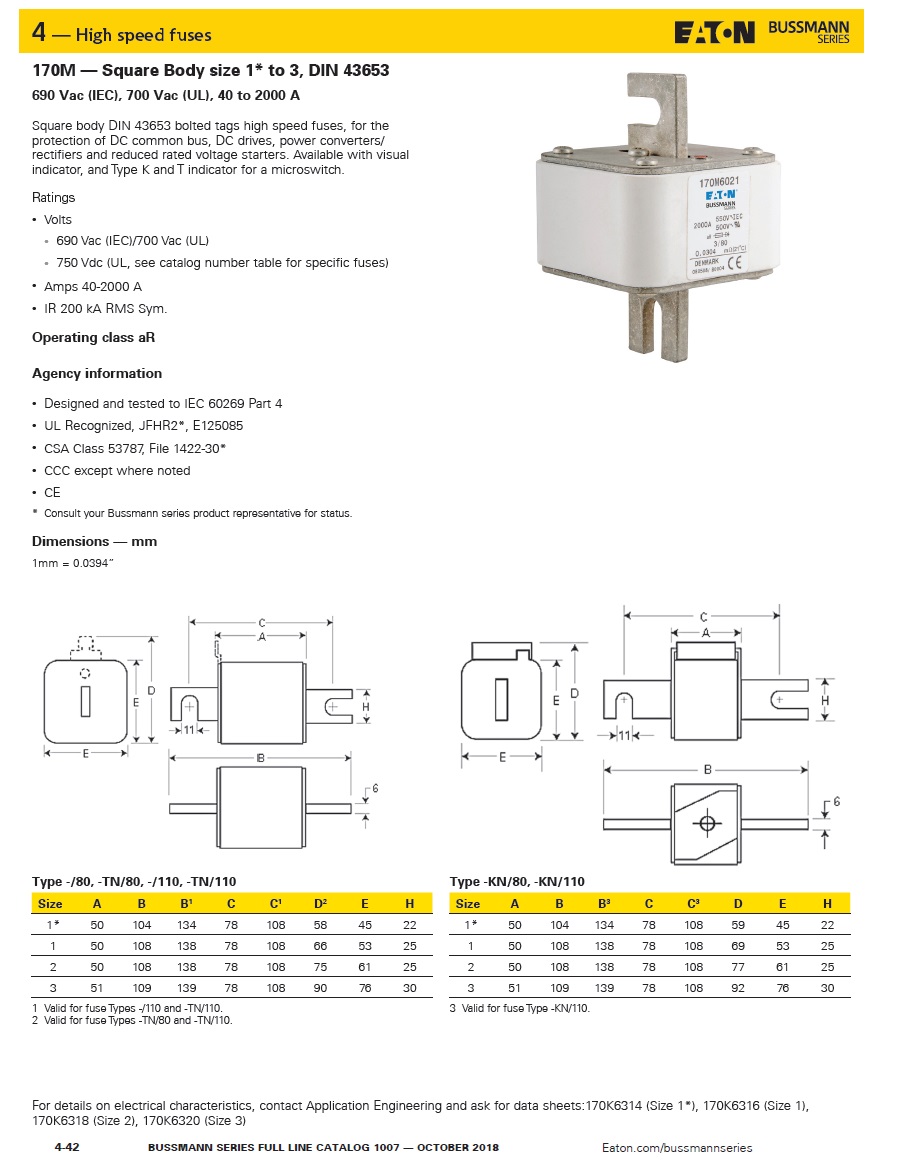

Product Name: European Standard 170M4267 690V/700V (40-2000A) K-type Micro Switch
Product parameters and model:
European standard square series DIN43653
Voltage: 690V/700V
Current: 40-2000A
Size: 1 * Tube: 45 * 45mm 1 * Tube: 53 * 53mm 2 * Tube: 61 * 61mm 3 * Tube: 76 * 76mm
Breaking capacity: 200KA RMS symmetrical
Installation method: intermediate busbar type

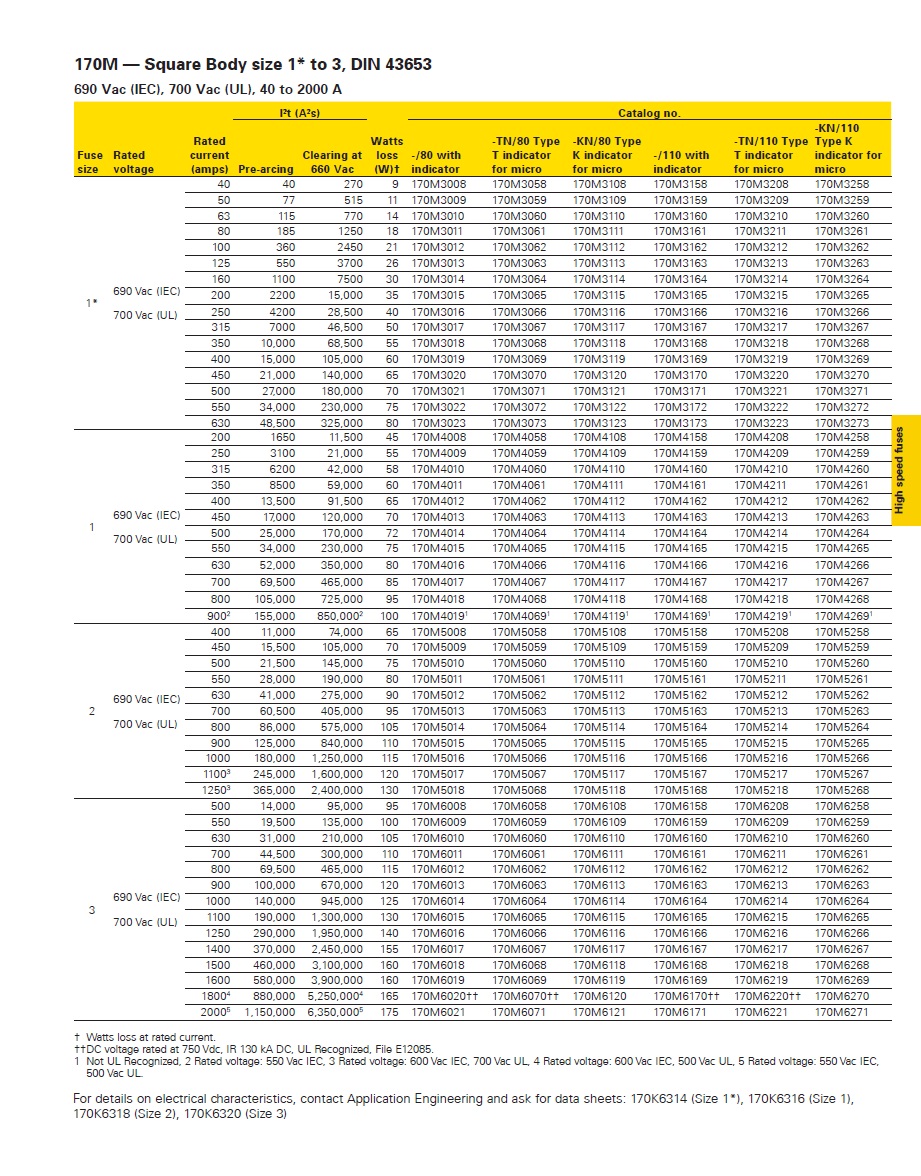

Tube 1 * 45 * 45mm, installation method: middle busbar type:
Voltage 690V, current 40A 170M3108 170M3258
Voltage 690V, current 50A, 170M3109, 170M3259
Voltage 690V, current 63A, 170M3110, 170M3260
Voltage 690V, current 80A 170M3111 170M3261
Voltage 690V, current 100A, 170M3112, 170M3262
Voltage 690V, current 125A, 170M3113, 170M3263
Voltage 690V, current 160A, 170M3114, 170M3264
Voltage 690V, current 200A 170M3115 170M3265
Voltage 690V, current 250A, 170M3116, 170M3266
Voltage 690V, current 315A, 170M3117, 170M3267
Voltage 690V, current 350A, 170M3118, 170M3268
Voltage 690V, current 400A, 170M3119, 170M3269
Voltage 690V, current 450A, 170M3120, 170M3270
Voltage 690V, current 500A, 170M3121, 170M3271
Voltage 690V, current 550A, 170M3122, 170M3272
Voltage 690V, current 630A, 170M3123, 170M3273
Tube 1 53 * 53mm, installation method: middle busbar type:
Voltage 690V Current: 200A 170M4108 170M4258
Voltage 690V Current: 250A 170M4109 170M4259
Voltage 690V Current: 315A 170M4110 170M4260
Voltage 690V Current: 350A 170M4111 170M4261
Voltage 690V Current: 400A 170M4112 170M4262
Voltage 690V Current: 450A 170M4113 170M4263
Voltage 690V Current: 500A 170M4114 170M4264
Voltage 690V Current: 550A 170M4115 170M4265
Voltage 690V Current: 630A 170M4116 170M4266
Voltage 690V Current: 700A 170M4117 170M4267
Voltage 690V Current: 800A 170M4118 170M4268
Voltage 550V Current: 900A 170M4119 170M4269
Pipe No. 2 61 * 61mm, installation method: middle busbar type:
Voltage 690V Current: 400A 170M5108 170M5258
Voltage 690V Current: 450A 170M5109 170M5259
Voltage 690V Current: 500A 170M5110 170M5260
Voltage 690V Current: 550A 170M5111 170M5261
Voltage 690V Current: 630A 170M5112 170M5262
Voltage 690V Current: 700A 170M5113 170M5263
Voltage 690V Current: 800A 170M5114 170M5264
Voltage 690V Current: 900A 170M5115 170M5265
Voltage 690V, current 1000A, 170M5116, 170M5266
Voltage 690V, current 1100A, 170M5117, 170M5267
Voltage 690V, current 1250A, 170M5118, 170M5268
Pipe No. 3 76 * 76mm, installation method: middle busbar type:
Voltage 690V Current: 500A 170M6108 170M6258
Voltage 690V Current: 550A 170M6109 170M6259
Voltage 690V Current: 630A 170M6110 170M6260
Voltage 690V Current: 700A 170M6111 170M6261
Voltage 690V Current: 800A 170M6112 170M6262
Voltage 690V Current: 900A 170M6113 170M6263
Voltage 690V, current 1000A, 170M6114, 170M6264
Voltage 690V, current 1100A, 170M6115, 170M6265
Voltage 690V, current 1250A, 170M6116, 170M6266
Voltage 690V, current 1400A, 170M6117, 170M6267
Voltage 690V, current 1500A, 170M6118, 170M6268
Voltage 690V, current 1600A, 170M6119, 170M6269
Voltage 660V, current 1800A, 170M6120, 170M6270
Voltage 550V, current 2000A, 170M6121, 170M6271
The breaking capacity is 200KA (estimated to be 300KA) RMS symmetrical.
The power loss is the power loss value at rated current.
Micro switch indicator can be ordered separately.
