Size: 1 * Tube: 45 * 45mm 1 * Tube: 53 * 53mm 2 * Tube: 61 * 61mm 3 * Tube: 76 * 76mm
Breaking capacity: 200KA RMS symmetrical
Installation method: intermediate busbar type
Tube 1 * 45 * 45mm, installation method: middle busbar type:
French: 690V
Americ
Voltage 690V, current 40A 170M3008 170M3058 170M3158 170M3208
Voltage 690V, current 50A 170M3009 170M3059 170M3159 170M3209
Voltage 690V, current 63A, 170M3010, 170M3060, 170M3160, 170M3210
Voltage 690V, current 80A, 170M3011, 170M3061, 170M3161, 170M3211
Voltage 690V, current 100A, 170M3012, 170M3062, 170M3162, 170M3212
Voltage 690V, current 125A, 170M3013, 170M3063, 170M3163, 170M3213
Voltage 690V, current 160A 170M3014 170M3064 170M3164 170M3214
Voltage 690V, current 200A, 170M3015, 170M3065, 170M3165, 170M3215
Voltage 690V, current 250A, 170M3016, 170M3066, 170M3166, 170M3216
Voltage 690V, current 315A, 170M3017, 170M3067, 170M3167, 170M3217
Voltage 690V, current 350A, 170M3018, 170M3068, 170M3168, 170M3218
Voltage 690V, current 400A, 170M3019, 170M3069, 170M3169, 170M3219
Voltage 690V, current 450A, 170M3020, 170M3070, 170M3170, 170M3220

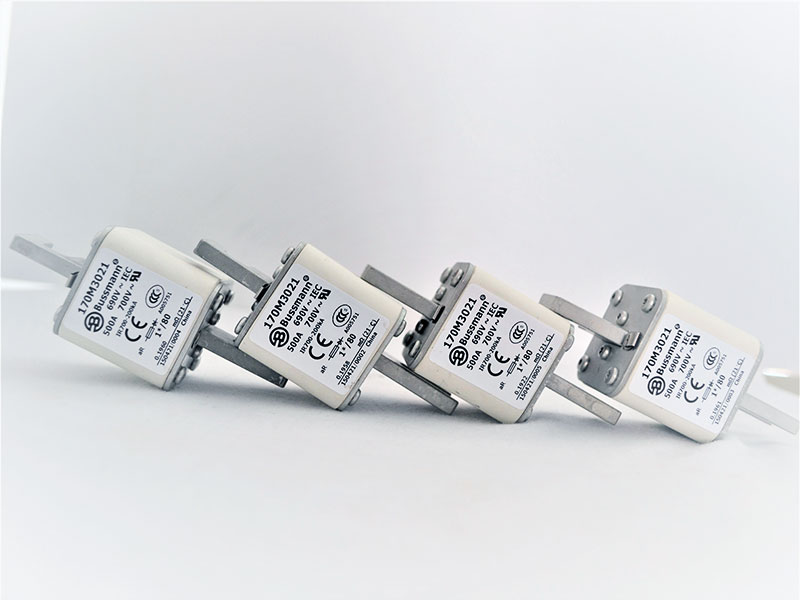

Voltage 690V, current 500A, 170M3021, 170M3071, 170M3171, 170M3221
Voltage 690V, current 550A, 170M3022, 170M3072, 170M3172, 170M3222
Voltage 690V, current 630A, 170M3023, 170M3073, 170M3173, 170M3223
Tube 1 53 * 53mm, installation method: middle busbar type:
Voltage 690V Current: 200A 170M4008 170M4058 170M4158 170M4208
Voltage 690V Current: 250A 170M4009 170M4059 170M4159 170M4209
Voltage 690V Current: 315A 170M4010 170M4060 170M4160 170M4210
Voltage 690V Current: 350A 170M4011 170M4061 170M4161 170M4211
Voltage 690V Current: 400A 170M4012 170M4062 170M4162 170M4212
Voltage 690V Current: 450A 170M4013 170M4063 170M4163 170M4213
Voltage 690V Current: 500A 170M4014 170M4064 170M4164 170M4214
Voltage 690V Current: 550A 170M4015 170M4065 170M4165 170M4215
Voltage 690V Current: 630A 170M4016 170M4066 170M4166 170M4216
Voltage 690V Current: 700A 170M4017 170M4067 170M4167 170M4217
Voltage 690V Current: 800A 170M4018 170M4068 170M4168 170M4218
Voltage 550V Current: 900A 170M4019 170M4069 170M4169 170M4219
Pipe No. 2 61 * 61mm, installation method: middle busbar type:
Voltage 690V Current: 400A 170M5008 170M5058 170M5158 170M5208
Voltage 690V Current: 450A 170M5009 170M5059 170M5159 170M5209
Voltage 690V Current: 500A 170M5010 170M5060 170M5160 170M5210
Voltage 690V Current: 550A 170M5011 170M5061 170M5161 170M5211
Voltage 690V Current: 630A 170M5012 170M5062 170M5162 170M5212
Voltage 690V Current: 700A 170M5013 170M5063 170M5163 170M5213
Voltage 690V Current: 800A 170M5014 170M5064 170M5164 170M5214

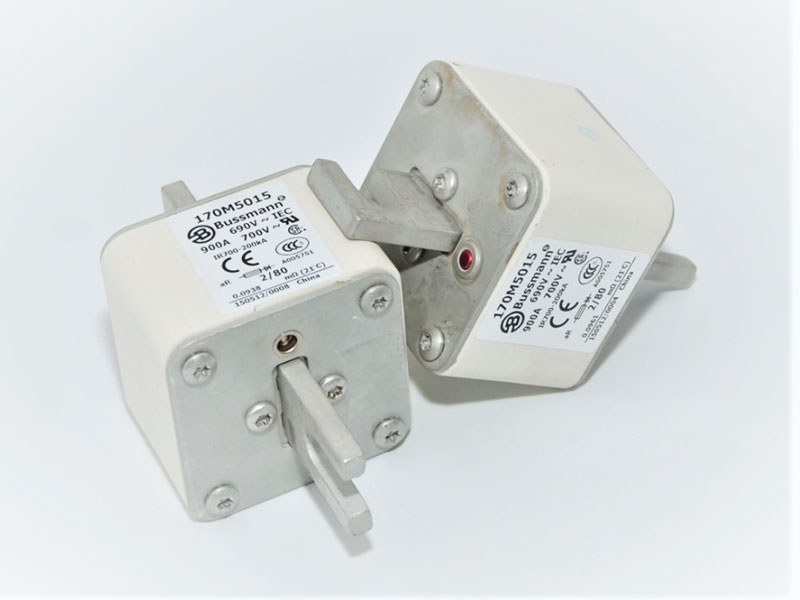

Voltage 690V Current: 900A 170M5015 170M5065 170M5165 170M5215
Voltage 690V, current 1000A, 170M5016, 170M5066, 170M5166, 170M5216
Voltage 690V Current 1100A 170M5017 170M5067 170M5167 170M5217
Voltage 690V, current 1250A, 170M5018, 170M5068, 170M5168, 170M5218
Pipe No. 3 76 * 76mm, installation method: middle busbar type:
Voltage 690V Current: 500A 170M6008 170M6058 170M6158 170M6208
Voltage 690V Current: 550A 170M6009 170M6059 170M6159 170M6209
Voltage 690V Current: 630A 170M6010 170M6060 170M6160 170M6210
Voltage 690V Current: 700A 170M6011 170M6061 170M6161 170M6211
Voltage 690V Current: 800A 170M6012 170M6062 170M6162 170M6212
Voltage 690V Current: 900A 170M6013 170M6063 170M6163 170M6213
Voltage 690V Current 1000A 170M6014 170M6064 170M6164 170M6214
Voltage 690V, current 1100A, 170M6015, 170M6065, 170M6165, 170M6215
Voltage 690V, current 1250A, 170M6016, 170M6066, 170M6166, 170M6216
Voltage 690V, current 1400A, 170M6017, 170M6067, 170M6167, 170M6217
Voltage 690V, current 1500A, 170M6018, 170M6068, 170M6168, 170M6218
Voltage 690V Current 1600A 170M6019 170M6069 170M6169 170M6219
Voltage 660V Current 1800A 170M6020 170M6070 170M6170 170M6220
Voltage 550V Current 2000A 170M6021 170M6071 170M6171 170M6221
The breaking capacity is 200KA (estimated to be 300KA) RMS symmetrical.
The power loss is the power loss value at rated current.
Micro switch indicator can be ordered separately.
